Content |
|||||||||||
|
Description |
|
|
"AddSampleDataset" adds Data Sets to Samples that are selected from the Input Queue. The Samples are then sent to the Output Queue. This Task must be preceded by a Task that outputs Samples.
|
| NOTE: | This is a "User Task" (see Workflow Task Definition Maintenance Page → New Task Details → Task Detail → System Task). |

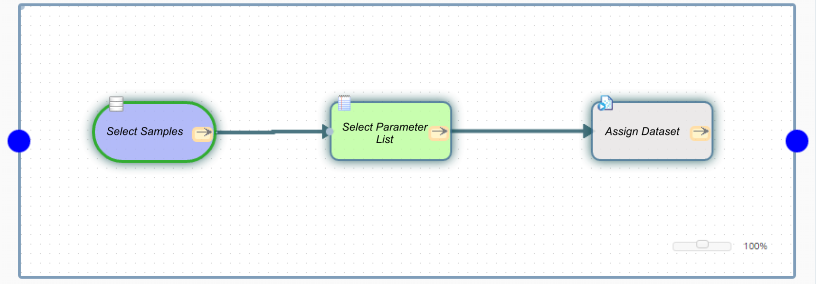

Functionality |
|
|

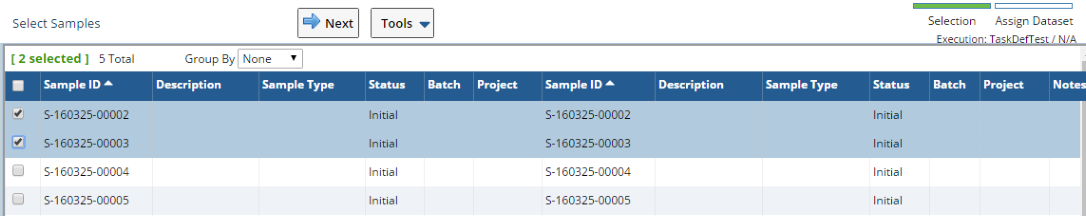

Select Samples |
After the preceding Task populates the Input Queue, "Select Samples" is a QueueSelectorStep (SampleSelection) that opens a Sample List from which you select the Samples to which Data Sets will be added.
|

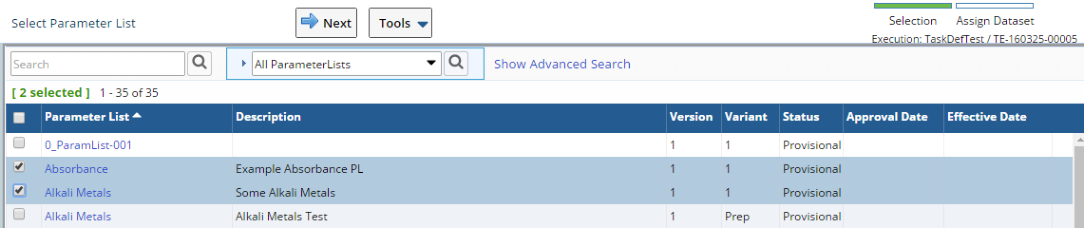

Select Parameter Lists |
"Select Parameter List" is a ListPageStep (ParamListList) that opens a Parameter List List from which you select the Parameter List (on which the instance is based) to be added to the Samples. Select the Parameter Lists, then click "Next".
|
Assign Dataset |
"Assign Dataset" is an ActionBlockStep that executes the AddDataSet Action, which adds instances of the selected Parameter Lists to the Samples. The Samples move into the Output Queue for use by another Task.
|
|
