Description |
|
|
"LoadArray" walks you through the processes of loading an Array.
|
| NOTE: | This is a "User Task" (see Workflow Task Definition Maintenance Page → New Task Details → Task Detail → System Task). |
Functionality |
|
|

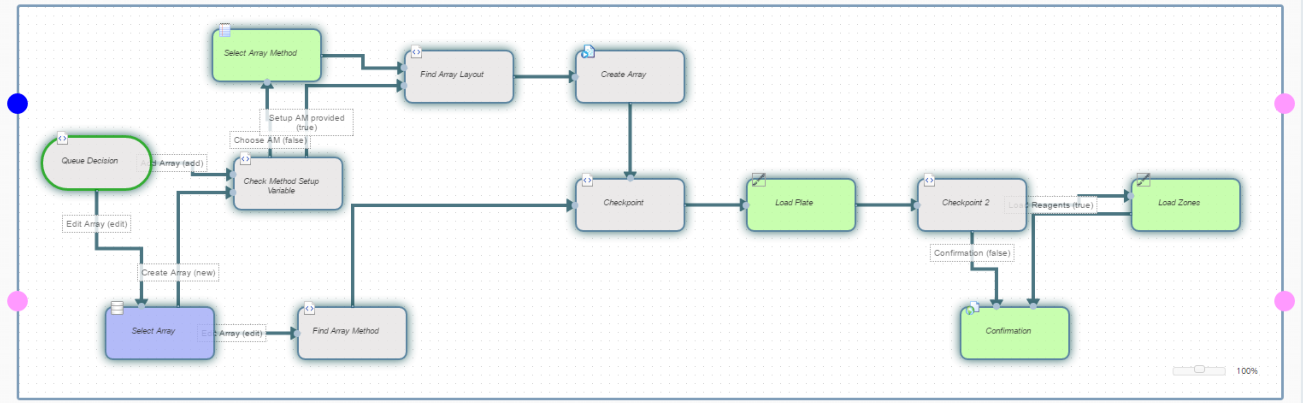

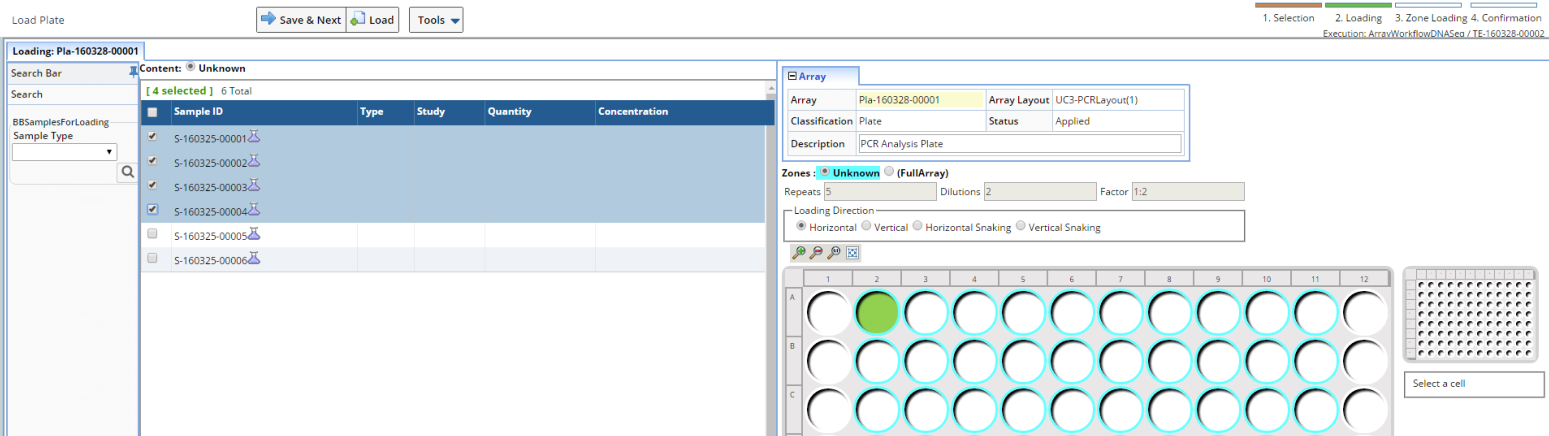

This is one possible path through the LoadArray Task using Samples passed into the Input Queue. The first page lets you choose the Samples.
|

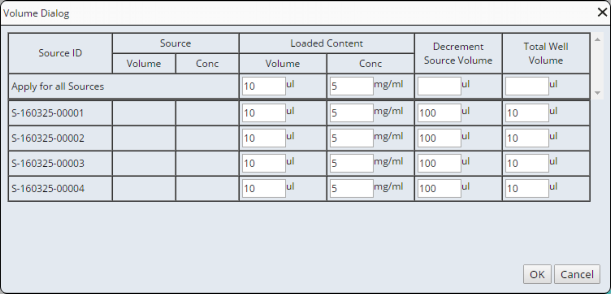

"Load" opens the Volume dialog for quantity definitions.
|

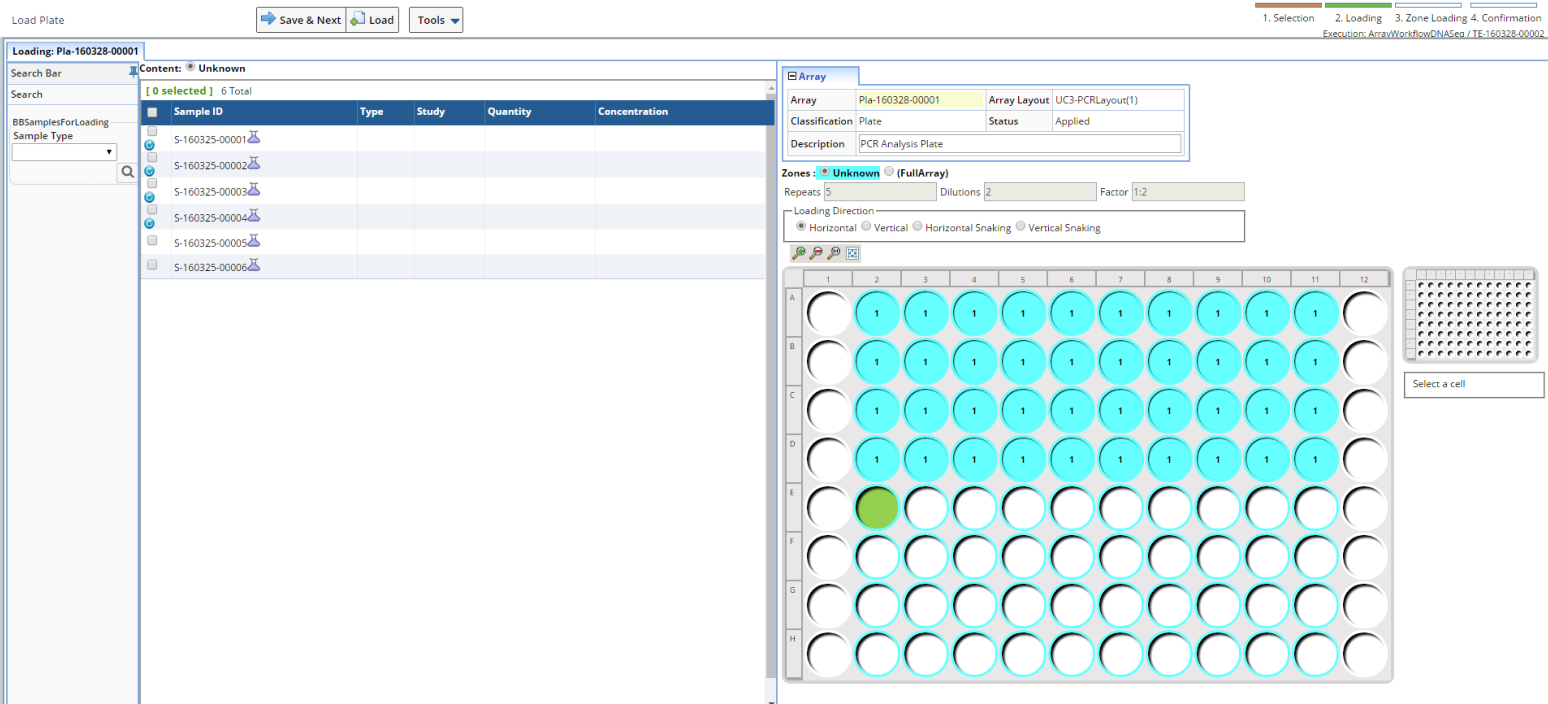

The Task returns to the Loading page.
|
"Save and Next" continues with the Zone loading definition.
|

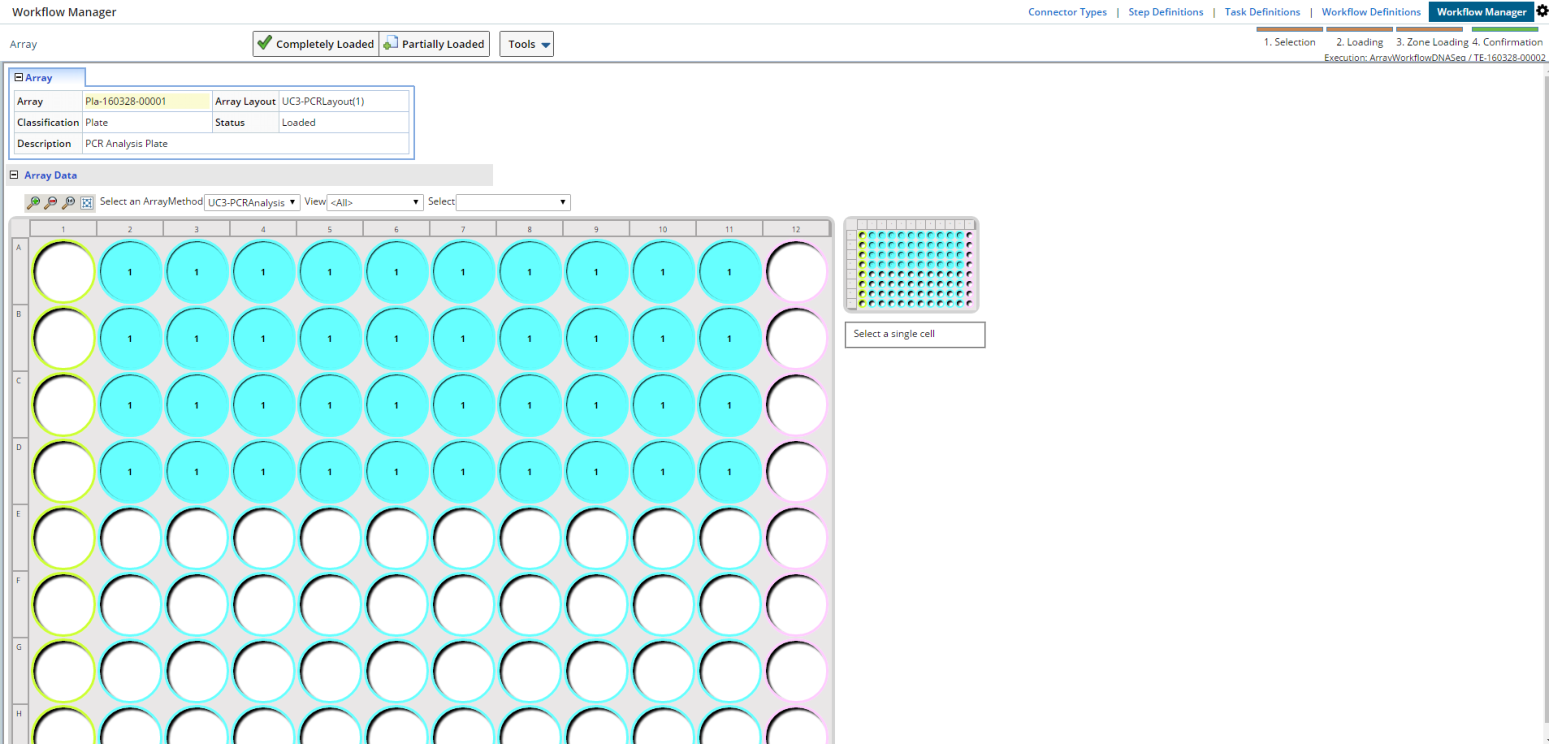

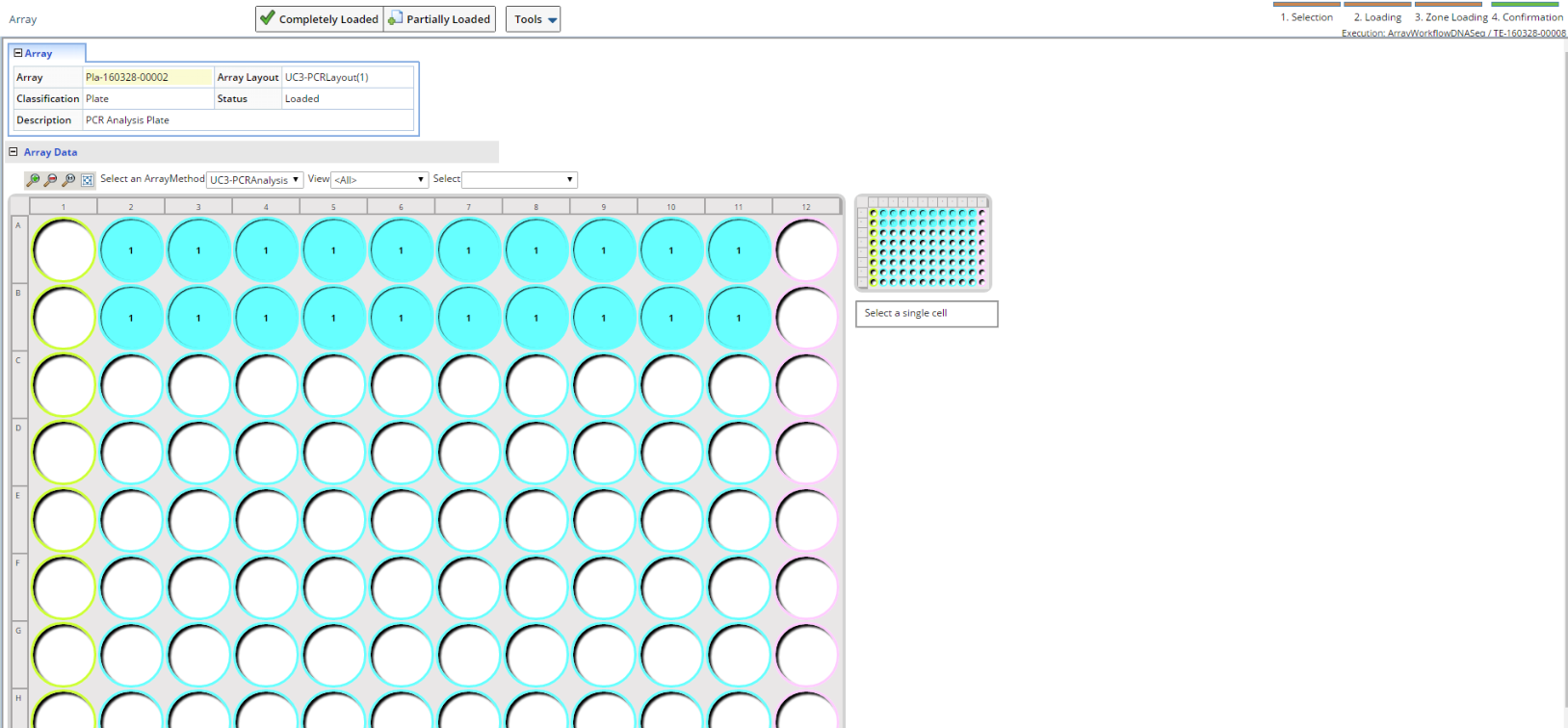

"Completely Loaded" sends the Samples to the Output Queue. "Partially Loaded" retains the Samples in the Input Queue.
|

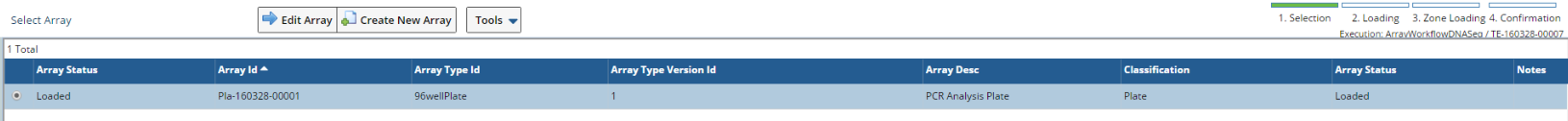

If there are already Samples in the Input Queue, the Array List is loaded.
|

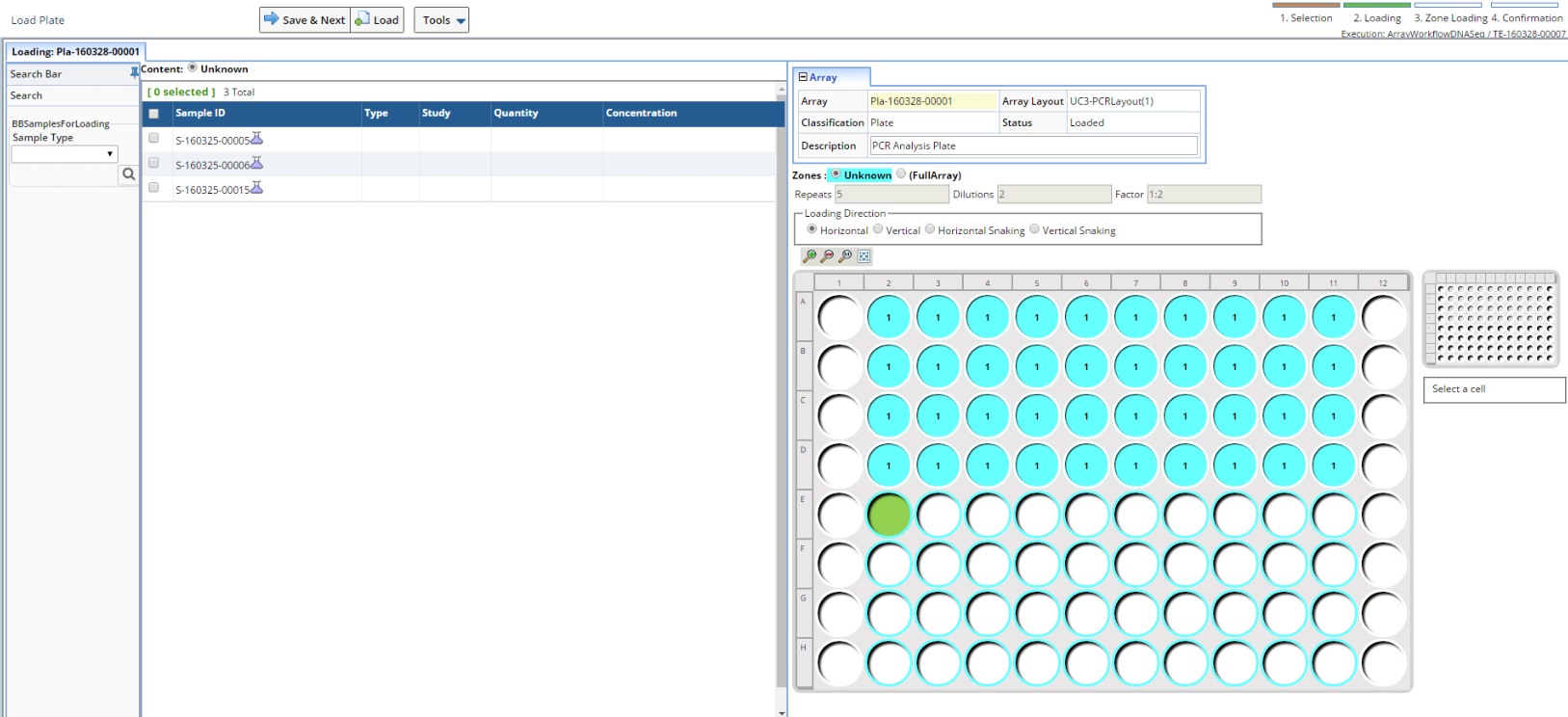

"Edit Array" transfers control back to the Array Loading page.
|

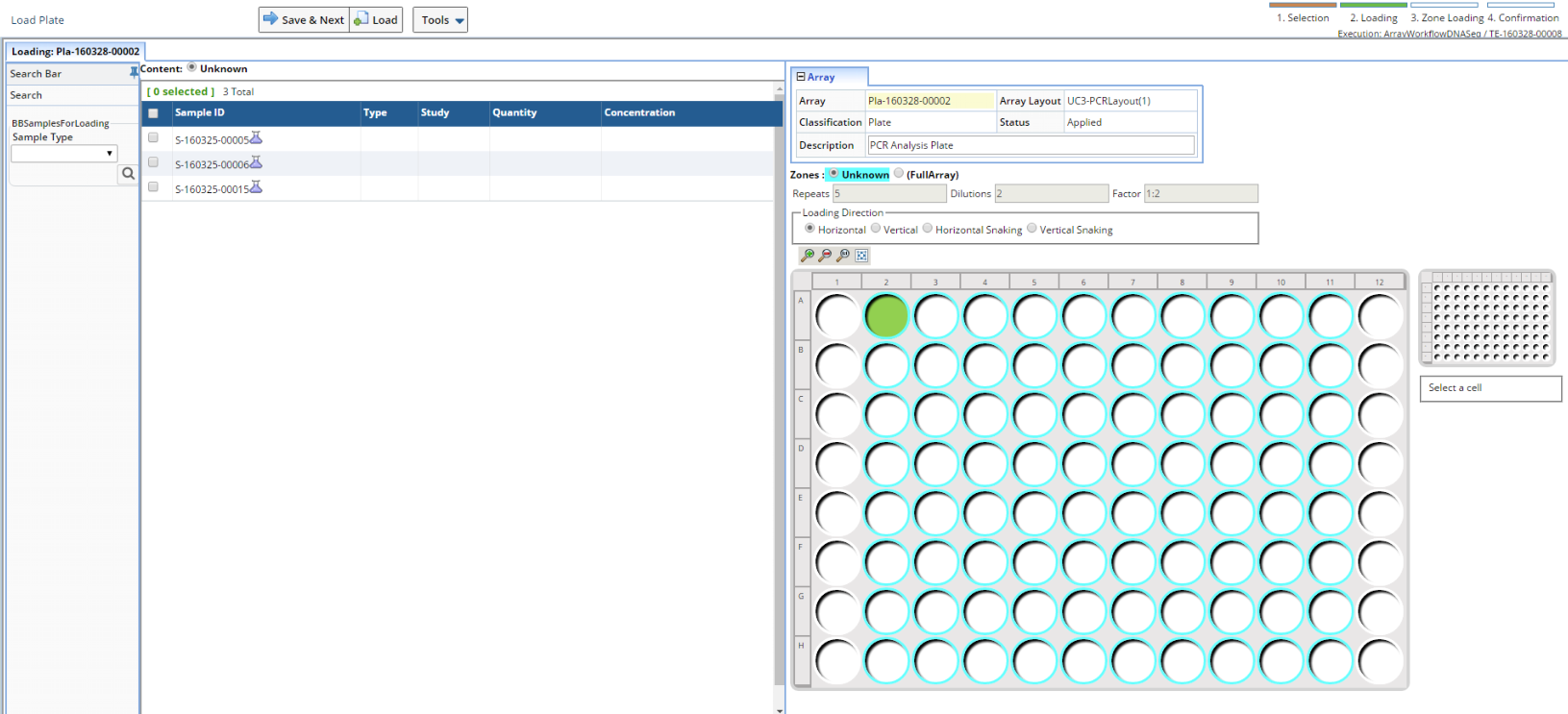

"Create New Array" begins the process of creating a new Array.
|
"Save and Next" transfers control back to the Loading definition.
|
"Next" finalizes the Array loading process.
|
