Overview	Top

Talend is third-party software that can be used to graphically design a parser. The purpose is to be able to extract, transform, and load data from files stored as attachments. Attachment Handlers will employ jobs that you have compiled in Talend. Run File Reports can also take advantage of this technology. This allows you to design the output needed from LabVantage in order to send data to an instrument in the form of a file.

This document will cover installing Talend, getting a workspace set up and using all the LabVantage components. To complete these instructions, you will benefit from a Talend Workspace provided by LabVantage. This will include components for implementations that are using Talend for the first time. Migrating Jobs from LIMSCI may require you to add legacy components also available from LabVantage.

Installing Talend for Data Integration	Top

Begin by downloading the installer from https://www.talend.com/products/data-integration/data-integration-open-studio/

Once downloaded, install to your C:\Talend folder and provide the rest of the defaults for the installation.

Obtain the sapphire.jar file from the application server where you installed LabVantage. This will be in the LabVantage home path.

If you have launched the Talend program, exit the program now.

Obtain the SDMSWorkspace.zip from LabVantage and extract it to your "C:\Talend\workspace\" folder (where C:\Talend\" is the Talend root installation). This creates a "C:\Talend\workspace\LABVANTAGE_SDMS\" folder. Take the "SDMSComponents.zip" and extract it into the "components" folder under the "LABVANTAGE_SDMS" workspace folder.

Prior to LabVantage 8.5, complex instruments were integrated with LabVantage using a component called LIMSCI. If you used this and you desire to migrate your drivers to LabVantage 8.5, you might want to optionally import additional components. If you require the LIMS CI migration components then take "SDMSLIMSCIComponents.zip" and extract it into the same "C:\Talend\workspace\LABVANTAGE_SDMS\components" folder.

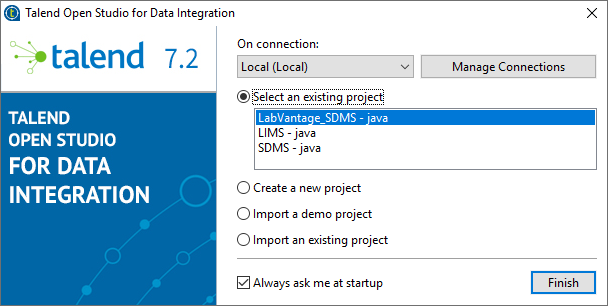

Now launch Talend and select switch projects/workspace.

Select the "LabVantage_SDMS" project and hit Finish.

In some cases, you may have to use the "Import an existing project" option to import that workspace before you can select it on your list.

A successful import of the LabVantage workspace will give you seven example job designs in your repository (left panel) and eight LabVantage components (right panel). If you have optionally imported the LIMS CI components, six additional LabVantage components are available to you for a total of 14.

Using your Talend menus, navigate to Window > Preferences

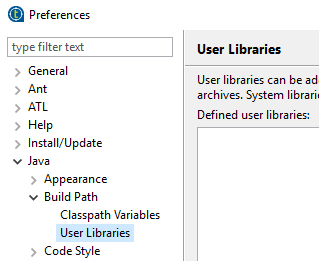

Within the Preferences dialog, expand Java then Build Path and select User Libraries

On the right, click the New button. Provide a name for this library. Do not tick "System library"

Click OK.

On the right, click the Add External JARs... button.

Browse your file system for the place where you have copied LabVantage's sapphire.jar

Once you are finished, your User Libraries should look similar to this:

Click Apply and Close

Context Variables	Top

When a Talend Job is executed inside LabVantage as an Attachment Handler or Report, there are several context variables sent to the Job which can be accessed with the "context.variable" syntax in Talend. Here is an example:

This is a list of context variables that you can pass to Talend. These can be used when testing a job in developer mode using the Talend before loading the code into LabVantage. The purpose of these is primarily to support the extraction, transformation, and loading of data from a file that is attached to an SDI in LabVantage. These files are usually instrument test results but could be of other origins.

• fileNameX (where X is a number from 1) - This is the filepath to the data file. There will always be at least one file passed in (fileName1) but there could be many which will increment this number.
• connectionid - The labvantage connection id for the current session. Technically you should not need this for our OOB components, however this is useful if you wish to use SOAP or our remote API in a Java component or custom component.
• sdcid - The sdcid of the Attachment Handler operation. In SDMS this would be LV_DataCapture.
• keyid1/2/3 - The keys of the Attachment Handler operation. In SDMS this would be just keyid1 which would be the data capture id.
• attachmenthandlerid - The keyid1 for the attachment handler being processed
• property_xxx (where xxx is the setup variable id) - This allows any Attachment handler set up variables to be passed in. These might be superseded by the Instrument. The property id will be prefixed with "property_". Please see below for a TalendUtil method to obtain set up variables.
• metadata_yyy (where yyy is the attribute id) - This allows any primary attributes to be passed in. The attribute id will be prefixed with "metadata_". In SDMS these will be attributes of the Data Capture and is a great way of passing variables between attachment handlers (and hence jobs).
• devtoken - A LabVantage authentication token generated and active. This is used in development mode from Talend OS (described later).
• lvendpoint- The URL to the Labvantage system. This is used in development mode from Talend OS (described later).

This is a list of context variables that you can pass to Talend. These can be used when testing a job in developer mode using the Talend before loading the code into LabVantage. The primary purpose for these is to be able to extract data from LabVantage, transform it to an output that can be read by an instrument, and supply a file to an SDMS Collector.

• connectionid - The labvantage connection id for the current session. Technically you should not need this for our OOB components, however this is useful if you wish to use SOAP or our remote API in a tJava component or custom component.
• reportid - The LabVantage report id being executed
• reportversionid - The LabVantage report version being executed
• property_xxx (where xxx is the report parameter id) - This allows any report parameters to be passed in. The property id will be prefixed with "property_". Please see below of a way of obtaining variables using TalendUtil.
• devtoken - A LabVantage authentication token generated and active. This is used in development mode from Talend OS (described later).
• lvendpoint- The URL to the Labvantage system. This is used in development mode from Talend OS (described later).

When executing the Job inside LabVantage any Attachment Handler/Operation set up variables or Report Properties are passed into the Context as property_variableid where variableid is the set up variable name or report property name. You are then free to access them through the context. You can simulate this to test your Job in Talend. Te limitation of this is:

1. Names are case sensitive
2. You need to provide the "property_" prefix
3. Executing the Job outside of LIMS and in dev mode means that these context variables are not loaded up until the first Labvantage Component is executed in the Job (which might be the last component in your job).

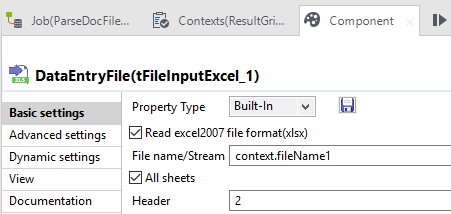

   For example, if your job parses a file to process data, the context values will not be available when reading the file until the end. Therefore we recommend using our provided API to do retrieval of any set up or report variables.

Use the LabVantageUtil class (sapphire.talend.LabVantageUtil) provided in Sapphire.jar. Inside Talend you will need to either import Sapphire.jar as an external library or do this as part of the install above when setting up our LabVantage Components. You can then use "sapphire.talend.LabVantageUtil.getVariable" static method when required (please also note that you may chose to import the "sapphire.talend.LabVantageUtil" class by using the standard tJava Component and under the advanced settings adding the "sapphire.talend.LabVantageUtil" as an import. All components downstream of this will then allow just LabVantageUtil.getVariable to be used. Here are a couple of examples:

• LabVantageUtil.getVariable("column1", "sampleid",context, globalMap) - this would obtain the context variable which is a set up variable from LIMS called column1 (found in context as property_column1) and if not found or is empty use "sampleid" as the default.
• LabVantageUtil.getVariable("column1", "sampleid",context, globalMap, true) - this would do the same as above, except if the column1 variable is in different case it would still return the value. Please note it is good practice to keep your Talend Job case sensitive.

Remember that in development mode, no properties will be available unless you provide a report id or attachment handler id as context variables for the Job. At run time in LabVantage these are passed in.

The LabvantageUtil also has two other static methods, one to fetch a dataset based on query and another to execute an action.

Building a Job for LabVantage	Top

All LabVantage components will build and run outside of LabVantage. However when run in Talend, the components will run in debug mode and output log information, but will not perform any functionality. For the LabVantage components to function the Job needs to be built then imported into an Attachment Handler or Report following these instructions.

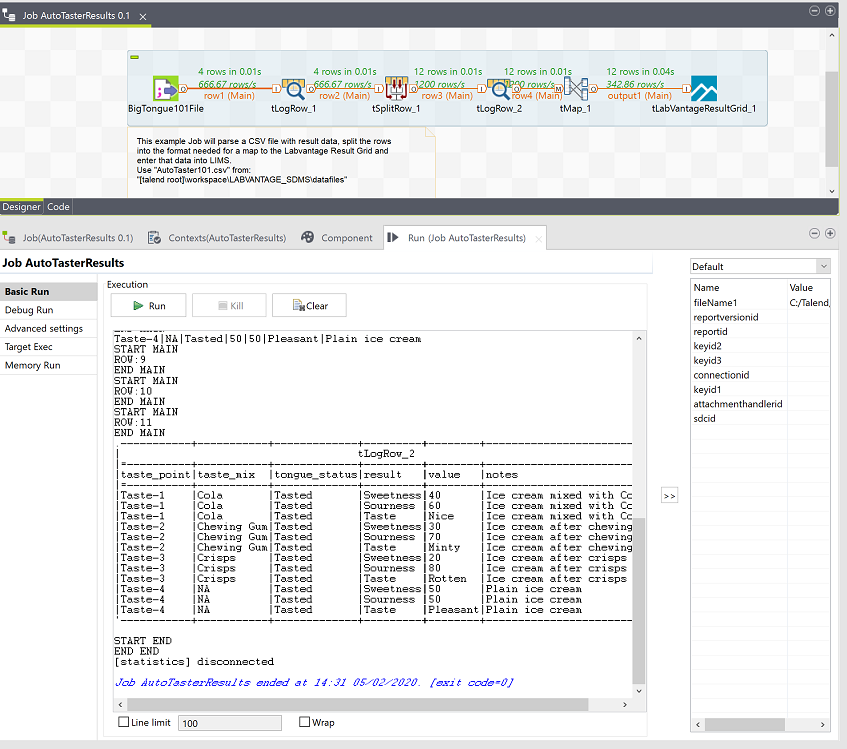

First open the Job file you wish to compile and make sure it runs using the Run button in the toolbar:

Observe the run is successful and the log shows no errors:

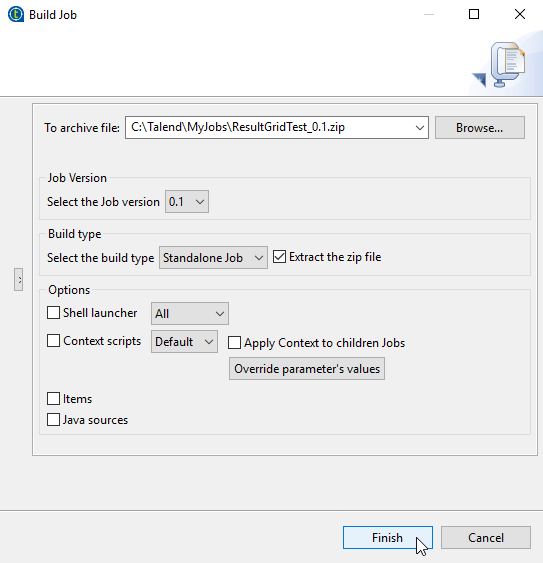

From the left hand Repository Tree right click on your job file and select "Build Job". In the Build Job dialog specify the following:

• Output path for the zip file
• Specify the Job version (the most current version if you are using versioning)
• Leave the build type as "Standalone Job"
• Tick the "Extract the zip file" checkbox
• Uncheck the "Shell Launcher" option
• Untick the "Context scripts" option
• Untick the "Items" option
• Untick the "Java Sources" option

Click the Finish button and wait until the build is complete and the dialog disappears.

Before continuing take a note of the class full name by visiting the "Code" tab in the editor, taking the package name and appending the generated class name:

In the example above the full class name would be "labvantage_sdms.autotasterresults_0_1.AutoTasterResults".

Now navigate to the folder specified in the Output path for the export Job. Inside this path you should see a folder by the job name and a "lib" folder.

First take the Jar file from the Job name folder which has the package name in the filename and copy to a centralized location:

Next if there are any 3rd party libraries the Job requires which are found in the Lib folder then copy them to the centralized location also. You have the following choices to distribute your additional third-party jars:

• Place them inside the LabVantage Class Path.
  • This is by either placing them inside the EAR or in the JVM classpath.
  • This could have issues if the compiled Job uses newer or modified versions of library files that LabVantage also uses (such as POI).
  • You may also have custom code and project code that uses different library versions and therefore conflicts can occur.
• Attach them with the Job File to the Attachment Handler.
  • Take the additional class libraries and attach them to the Attachment Handler in labvantage.
  • This then uses our dynamic class loader to load the libraries at run time. This uses a top down approach where the provided libraries are loaded first before any core system libraries and thus removes conflicts.
  • The class loaders are cached for each server node to improve efficiency
  • This is great for cloud-based systems or development systems where you need to quickly build and develop instrument parsing logic.
• Use the DyncamicClassLibaries folder inside Application Home folder
  • Inside here you will find two folders Product and Custom, where Product contains any libraries our product provides (overridden at upgrade) and Custom is where you provide any additional libraries
  • This folder is only used for our dynamic class loading and will not affect any other aspect of the product
  • This is more efficient than just attaching them all to each Attachment Handler and means you can centrally place all Talend based libraries to cover your full driver development
  • This is more efficient as the libraries are loaded once per clustered node.
  • We distribute routines.jar under the Product sub folder for our support of Talend 7.2 Jobs.
  • You can also use this option for the Job file as well and place any Jar files for the main job in the custom sub folder.
  • You can change the path of this Dynamic Library folder using the System Configuration page. This is advised when running on a clustered environment to make sure libraries are centrally located.

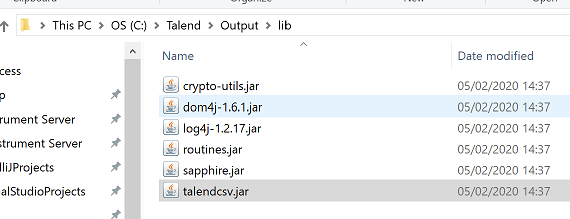

In the example below we only require talendcsv.jar for the Job to work as all others are provided:

Dynamic class loading is disabled system wide by default. To use it, you need to go into the Security Policy and find the "Java Based Attachments" section. Set "Enable On Attachment Handlers" and "Enable on Reports" to Yes. See Policies Help Topic for more details. You will also need to check that a role is specified in the "Java Attachments Role" and that your user has that role.

In this document we will cover adding your Jars dynamically.

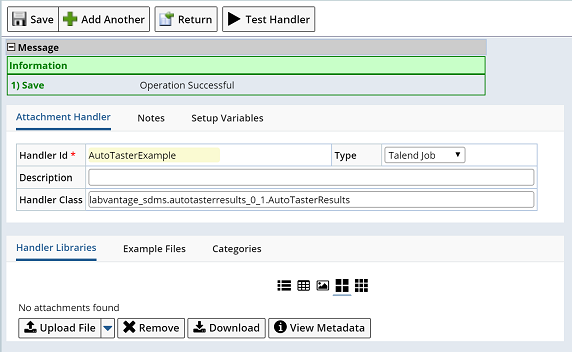

• First create a new Attachment Handler SDI on the Attachment Handlers List page.
• Set the type to "Talend Job" and provide the handler class as found earlier (example: labvantage_sdms.autotasterresults_0_1.AutoTasterResults)
• Save the handler.

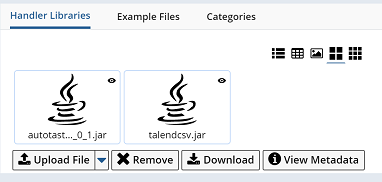

Using the Upload File button, attach the library files you are executing.

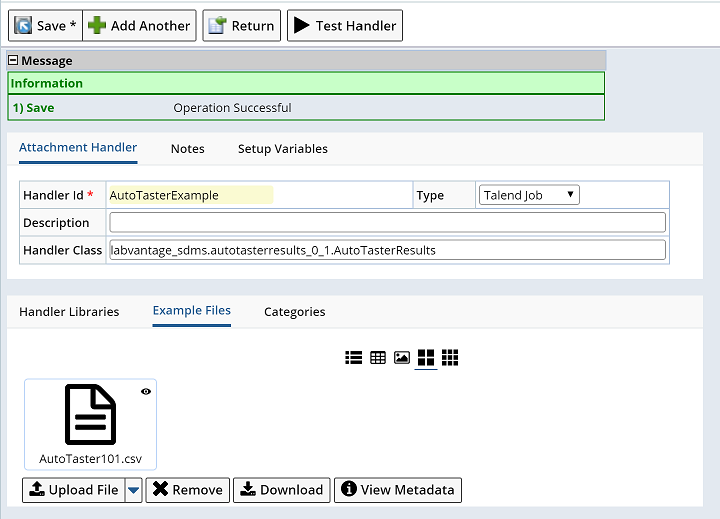

Add any example files that you know the Talend Job works with in the Example Files tab and click Save.

To validate your new Attachment Handler, click the Test Handler button and click OK on the prompt without selecting an attachment class. This button will create an adhoc Data Capture SDI, attach the example file, add itself as the operation on the Data Capture and process it.

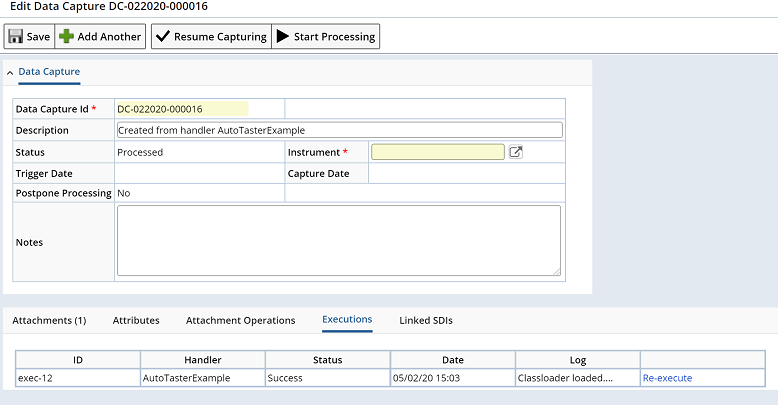

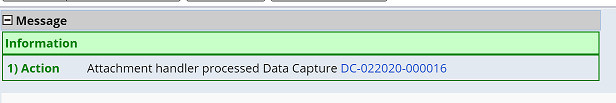

When the page refreshes with the green information box, click the link to the adhoc Data Capture to open it. Jump to the executions tab on the Data Capture to view the execution information on that Talend Job.

You can click the "Log" column to see the detailed log from Talend. You can also change the attachment and click the re-execute if you wish to retry the execution.

Development Mode	Top

Some of the LabVantage components support being run outside of LabVantage while developing and building the driver/report/parsing logic. However this is for development purposes and restricts certain functionality which is only available when executed inside LabVantage from an Attachment Handler. Development mode is just to aid the building of instrument and parsing drivers and not to fully execute functionality outside of LabVantage.

The following components support full operation in development mode:

• tLabVantageFileOutput
• tLabVantageLinkSDI
• tLabVantageQueryInput
• tLabVantageDocumentParser

The following components support limited functionality in development mode:

• tLabVantageAction - Will only allow in line Synchronous Actions to be executed. It will now run the completed action block but will log the action block structure.
• tLabVantageExec - This is the old LIMS CI migration component and like tLabVantageAction will allow actions which are executed in line of the job to be run.

The following components do not operate outside of LabVantage and in development mode:

• tLabVantageResultGrid - No result grid functionality will operate outside of LabVantage, however the structure of the grid will be logged.
• tLabVantageLinkSDI - No Link SDI will be written back to LabVantage
• tLabVantageMetaData - No meta data will be written back to LabVantage

To place the Job in development mode you simply need to set the "devtoken" and "lvendpoint" context parameters. These are prompted for when executing the Job from Talend using the LabVantage default context library. The devtoken is an encrypted authentication token obtained from Labvantage following these steps:

To begin, register a new external application in the External Apps area in LabVantage. If you already have an External App called "TalendDeveloper", please review the settings to verify they match what is shown here. You can find more details about this in the Authentication Tokens for External Applications help topic.

Make sure you set the Status to Active and check the checkbox next to Requires SOAP WebServices. Next, register a new external user in LabVantage.

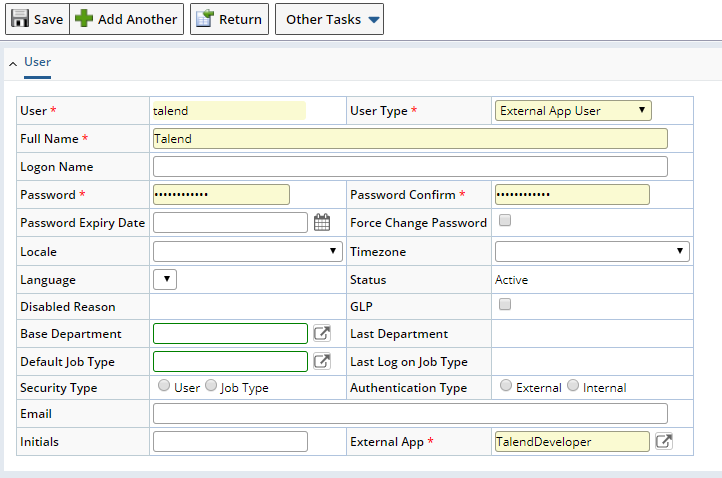

System Admin > Security > Users... Add

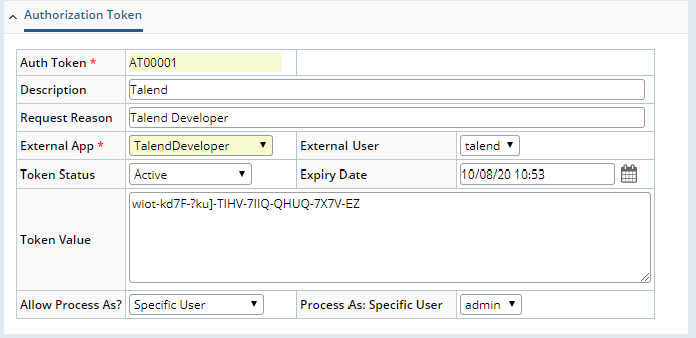

Add a new Token in the Auth Tokens area in LabVantage.

System Admin > Security > Auth Tokens:

Set the External App and External User to the ones you set up earlier and change the Token status to active. You now need to copy the Token Value and use this as the "devtoken" in the context parameter in Talend.

The "lvendpoint" is simply the URL to the LabVantage application including the server, port and application name. For for example: https://server_host:8080/labvantage

Certain processing might not be allowed according to your Security Policy. Navigate to System Admin > Configuration > Policies... and edit the SecurityPolicy. Enable WebServices, Full Action Processing, and Unregistered SQL. Please note that these settings are not recommended for a production system and should be used for development only. This can be turned off again once development is complete and the attachment handler is running inside LabVantage. Also, it is recommended once the Talend Job is built and deployed to LabVantage that you also deactivate the authentication token used for development mode.

Now when you execute a Job directly from Talend, the LabVantage components will use SOAP based webservices to communicate with Talend and allow functionality such as querying Labvantage.

Another feature of Development Mode is the ability for the framework to fetch additional context variables that would normally be available to you when running the Job inside LabVantage. This includes set up variables for the Attachment Handler and meta data for the Data Capture. To enable this simply provide the context parameter "attachmenthandlerid" when executing the Job inside Talend Studio. The Development Mode framework will then fetch the set up variables from the provided attachment handler and populate the context parameters (logging out the variables). You can then also pass an "sdcid" and "keyid1" context parameters which would be the Data Capture details (sdc being LV_DataCapture" and the keyid1 being the data capture id). When provided it additionally retrieves any operation level overrides to the set up variables as well as any meta data on the data capture and populates the context parameters (again logging out the parameters). This then means you can use the context parameters in your driver development.

Standard Component Documentation	Top

LabVantage supplies several components that are designed specifically for building Jobs that can insert information into LabVantage using the API. You have these components if you imported a workspace or the individual components in the first section of this document Creating a LabVantage Workspace

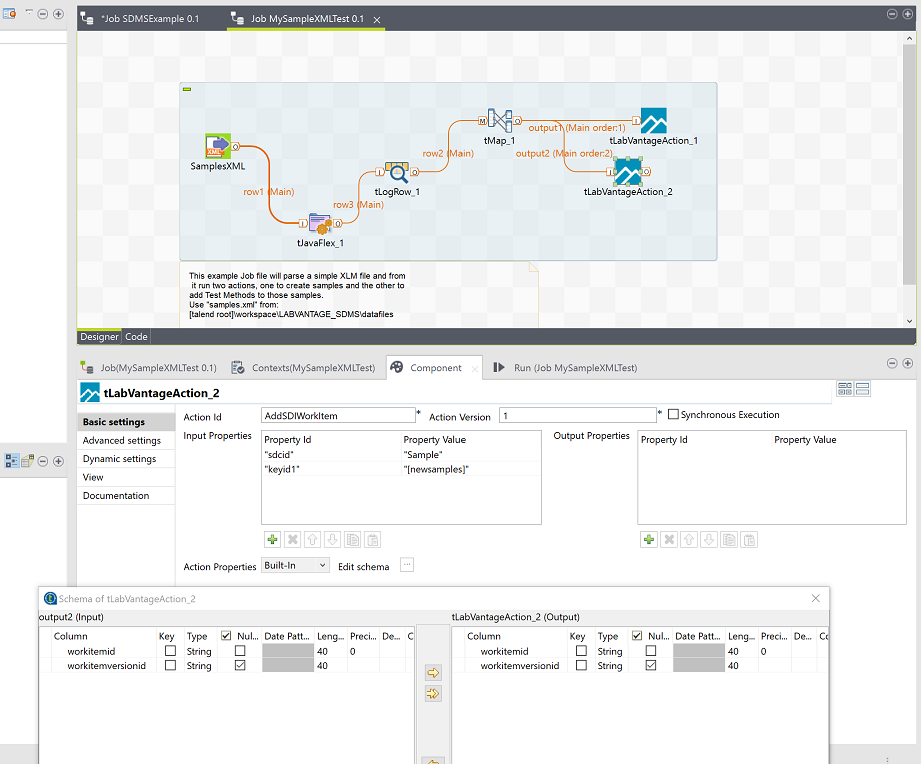

This component is used for executing a single action in LabVantage. The action is executed directly in the LIMS and all at the end once the Job has finished working. Internally an action block is constructed from any call to the Action component and that action block is then executed as the Job returns to LabVantage. This entire block is therefore in the same transaction. However by checking the "Synchronous Execution" checkbox in the component properties it will force the action to be executed immediately in its own transaction in the run of the Job. This latter option is useful if you need to run an action to use its output to drive the properties of another component in the Job.

• Action Id - The id of the action
• Action Version - The version of the action (defaults to 1)
• Synchronous Execution - As mentioned above the actions by default will be compiled into an action block and executed at the end of the Job in the same transaction. Checking this box will instead make the action run as the component is executed.
• Input Properties - Key Value Pair of input properties for the action (these are in addition to the schema driven properties). Like with normal Actions you can use [] expressions to pass output properties from one action to input properties of another.
• Output Properties - Key Value Pair of output properties for the action. Use [] expressions to pass output properties out as action block properties so they can be used in other actions (this is only applicable if not Synchronous).
• Schema - The schema allows any properties to be defined and then these are added to any properties defined in the input properties

Works in limited use outside of LabVantage. When run in Development mode from Talend OS it will only allow synchronous actions to be processed.

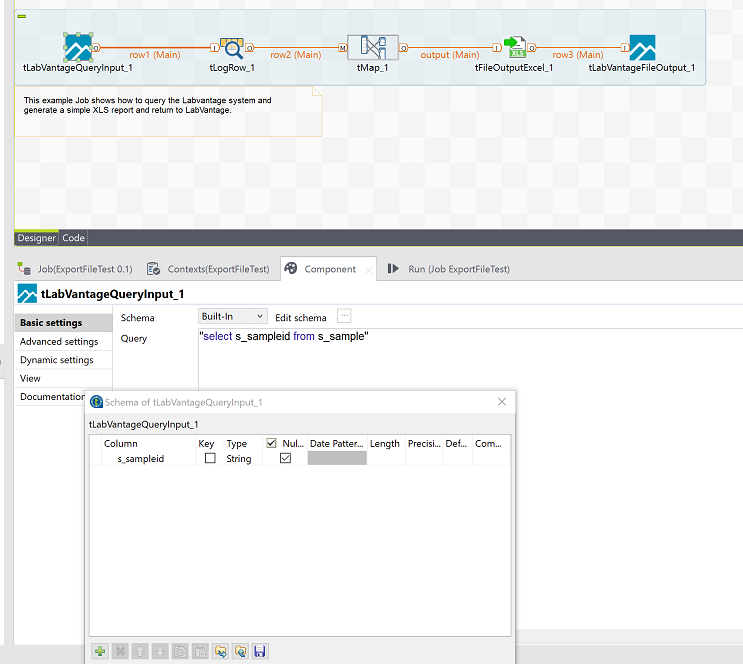

This is a very simple component that will simply execute a query into the LabVantage database using the SQL provided. Please note that this bypasses any SDI and Departmental security and therefore it is recommended to use the tLabVantageSDIInput instead if you wish to execute queries on SDI's. Also note that because all our components are executed inside LabVantage automation service, that you do not need to relax your security policy for unregistered SQL.

• Schema - The schema is a list of columns returned by your SQL. The code will populate these columns at run time once the SQL is executed.
• Query - The SQL query to execute in LabVantage.

Works fully outside of LabVantage. When run in Development mode from Talend OS it will use SOAP webservices to query the LabVantage system.

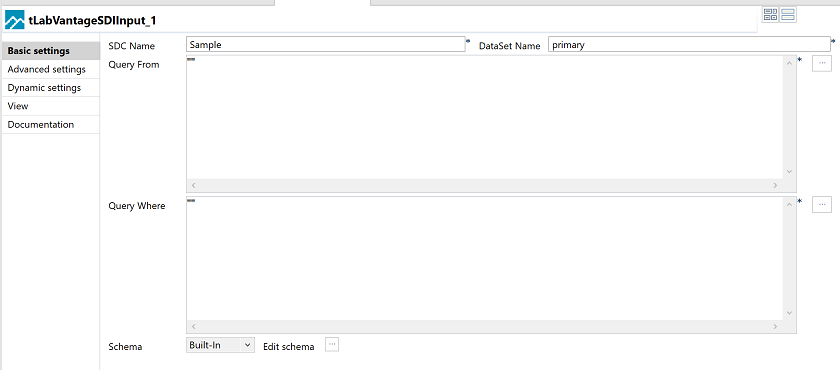

This is a component that will execute and SDI Request for LabVantage SDI's using our full security layers.

• SDC Name - The SDC Id
• DataSet Name - The data set to take from the SDI (e.g. Attributes, Attachments, Primary, etc). The default is the Primary data set.
• Query From - The Query From SQL for the SDI Request
• Query Where - The Query Where SQL for the SDI Request
• Schema - The schema is a list of columns returned by your SDI Request. The code will populate these columns at run time once the SDI Request is executed.

Works fully outside of LabVantage. When run in Development mode from Talend OS it will use SOAP webservices to query the LabVantage system.

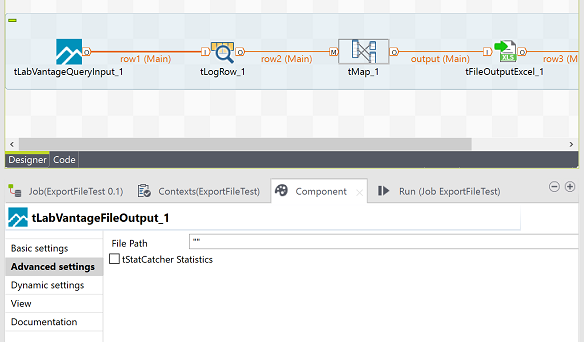

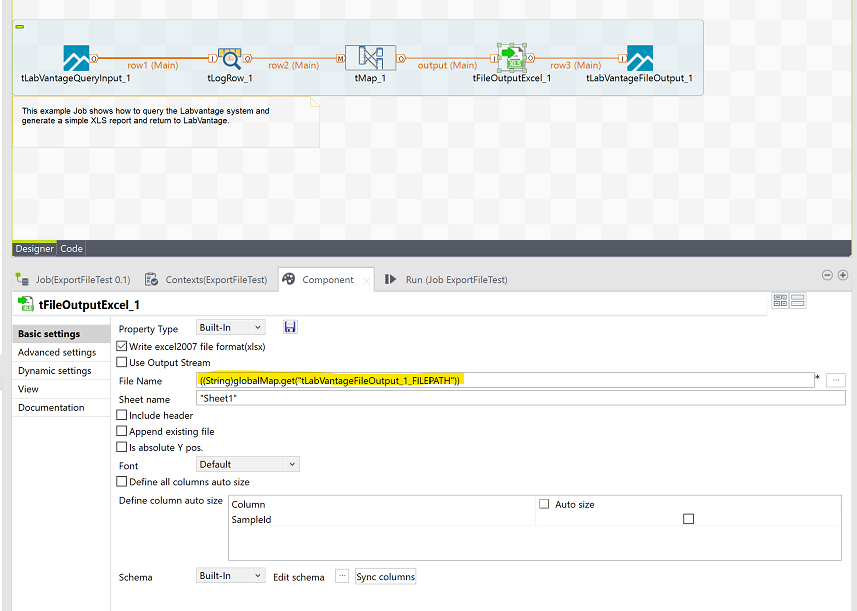

This component will return a file back to LabVantage. When run as an Attachment Handler this will have the effect of adding another Attachment to the Data Capture. When run from a report this will have the result of returning the file as the report content. To use this component any Talend components in the Job creating files need to output the file to the defined temporary file path which is provided by the Global Map property "FILEPATH". For instance if you add a tLabvantageFileOutput to your Job and it is named "tLabVantageFileOutput_1" then you will have a global map variable "tLabVantageFileOutput_1_FILEPATH". Also if you have more than one file to output you will need multiple tLabvantageFileOutput components.

• File Name - The filename to call the file when it is returned to LabVantage (and hence the name of the file in the attachment or report).
• Attachment Class - The Attachment Class to use when the file is returned as part of an Attachment Handler. This is not applicable when using Java/Talend Reporting and only applicable when using Talend Attachment Handlers. By providing a class name such as "Processed Data File" it allows the Attachment Operations to be called with particular attachments. For instance you could have a first Talend job which outputs a new CSV file from an instrument file and then another Attachment Operation as a Talend Job which takes that file and inputs the data. Thus the first operation would need to attach the new CSV file with a particular attachmentclass so that the second operation could be sent it.

• File Path - By default the component will use the create temporary directory functionality of the Java JVM to dump files to feed back to LabVantage. However, you can override that by providing a specific directory in this property.

Works fully outside of LabVantage. However no files would be written back to LabVantage.

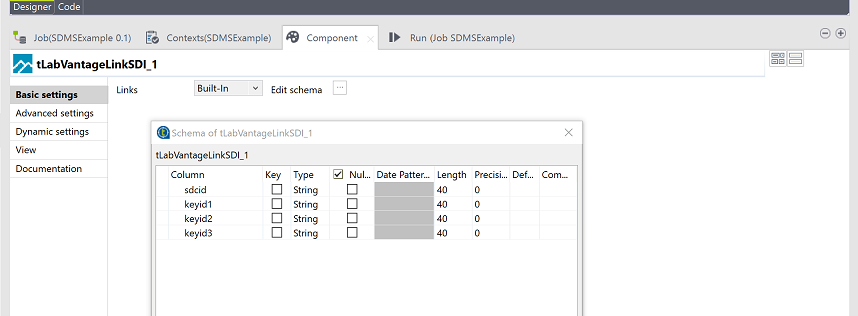

This component will return back a set of links to create the primary (Data Capture) to the provided SDI's (e..g Sample). This means you can link any processed data to the data capture.

• Schema - Simply a schema of SDCId, Keyid1/2/3 for the link. For example if we wanted to link back to Sample S-0001 we would map Sample to SDCId and S-0001 to Keyid1.

Does not work outside of LabVantage. No linking would occur back in LabVantage.

This component allows you to return key value pair attributes back to LabVantage which are then added to the Attachment Handler primary (e.g. Data Capture). As through context you are passed meta data through metadata_xxx (where xxx is the attribute id) this is a way of passing data that's not LIMS data between Jobs or Attachment Handlers or just a way of storing non-LIMS data which can still be searched and queried.

• Schema - Simply a schema of attribute id and value where the column name is the attribute and the value mapped to it is the value.
• Additional Meta Data - A key value pair of additional attributes not mapped by the schema

Does not work outside of LabVantage. No meta data would be created in LabVantage

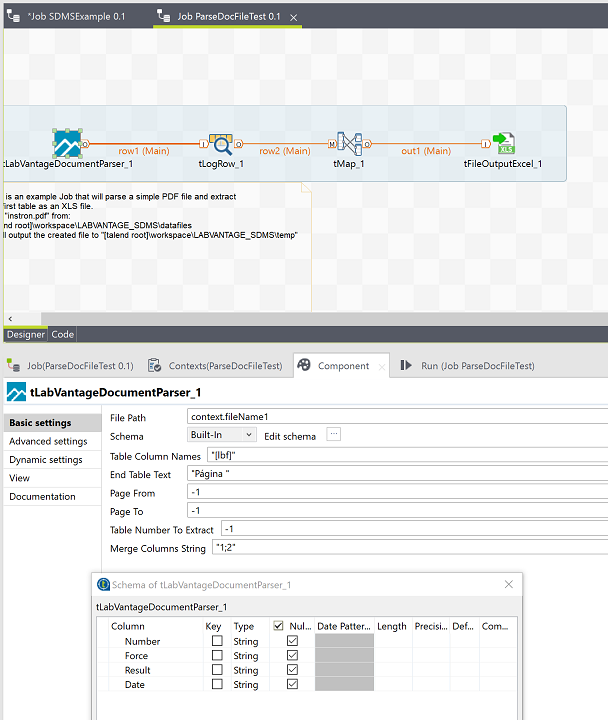

Talend does not provide a way to parse and process PDF or Post Script files. Therefore, LabVantage provides this component which allows you to input a PDF or PS document and extract tabular data. The document parser does not rely on LabVantage internal functionality. This component can be run outside of LabVantage and from a standard Job.

• File Path - The path to the file to parse
• Schema - The columns expected to be extracted from the Document
• Table Column Names - The column to look for in the table to start the extraction
• End Table Text - The text to find to indicate the end of a table
• Page From - The page in the PDF to begin searching for tabular data (default is -1 to indicate to start from the beginning)
• Page To - The page in the PDF to end searching for tabular data (default is -1 to indicate to do the entire document)
• Table Number to Extract - If multiple tables are found then which table to extract. A default of -1 means take the first one.
• Merge Columns String - The columns to merge together as its extracted. For some documents which are not in well formed tables or using older layouts then many empty columns may be found as white space and tabs are treated as column borders. This property allows you to collapse those down.

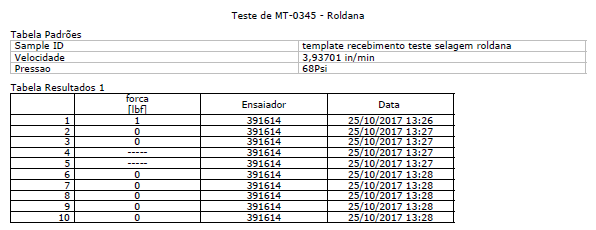

Here is an example PDF which we require to extract the second table with the forca [ibf] column:

We want the columns from a table containing the [IBF] column and want to end the table collection as soon as we encounter the string "Pagina" which is the end of the page. The number column also produces two columns due to the white space so we want to merge them together. Finally we want to output the columns in the order they are found as Number, Force, Result and Date. The settings of the component are shown above.

Example Output:

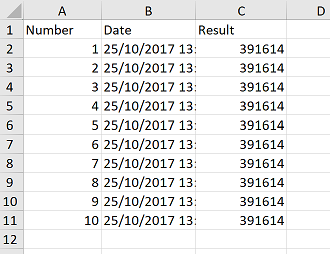

We then map the Number, Date and Result to a new XLS file:

Works fully outside of LabVantage.

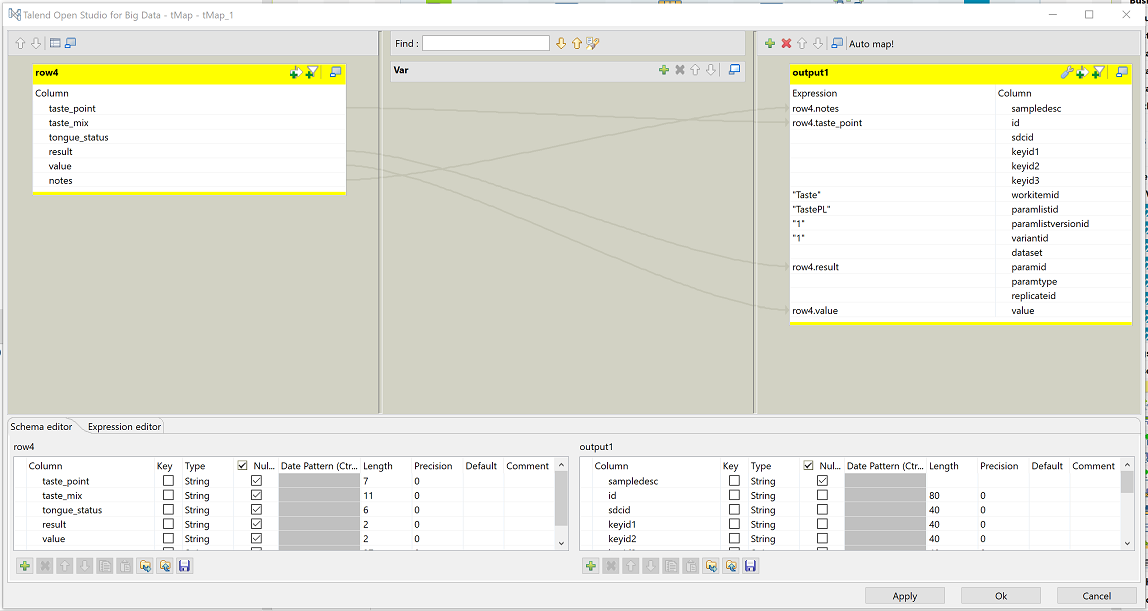

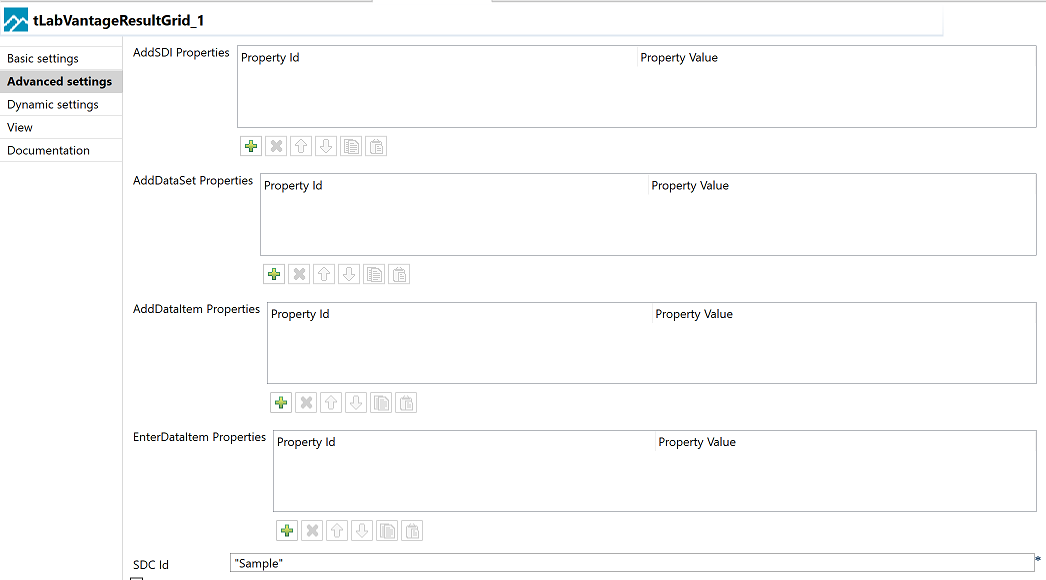

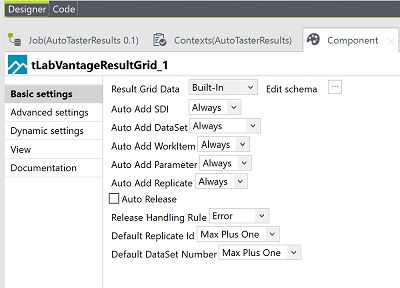

The result grid component is the SDMS component that allows SDI's and Data to easily be created and updated in the LIMS with minimal effort. It automatically fills in missing information such as missing replicate ids and allows through property driven settings to define how the data should be imported and saved. The functionality of this component wraps the Result Grid API.

• Schema - The columns expected by the result grid. Not all have to be provided. Note that additional columns that are on the primary record (where sdcid, keyid1/id) can be added as well.
  • id
  • sdcid
  • keyid1/2/3
  • workitemid
  • paramlistid
  • paramlistversionid
  • variantid
  • dataset
  • paramid
  • paramtype
  • replicateid
  • value

• Auto Add SDI - Set to Always to always add any missing SDI (e.g. Sample). Set to Never to always expect the SDI to be present.
• Auto Add DataSet - Set to Always to always add any missing datasets. Set to Never to expect the dataset to be present and set to Remeasure to create a new dataset if there is one present.
• Auto Add WorkItem - Set to Always to always add the missing Test Method. Set to Never to expect the Test Method to be present on the Primary.
• Auto Add Parameter - Set to Always to always add any missing parameters into the DataSet on the Primary. Set to Never to expect the Primary data set to have the Parameter.
• Auto Add Replicate - Set to Always to always add any missing replicates. Set to Never to expect the replicate to be present.
• Auto Release - Check this if you want the DataSet to be auto released after data entry.
• Release Handling Rule - Set to Error if you want an error to be thrown if release of the data set fails. Set to ignore to ignore any release errors. Finally set to override to override the release error and release anyway.
• Default Replicate Id - Set to One to always default to replicate 1. Set to Max Plus One to always increment the highest replicate number currently present on the dataset.
• Default DataSet Numbe - Set to One to always default to dataset 1. Set to Max Plus One to always increment the highest dataset number currently present on the primary.

• Add SDI Properties - A set of additional properties to push into the AddSDI action calls that are made while adding any missing SDI's
• AddDataSet Properties - A set of additional properties to push into the AddDataSet action calls that are made while adding any missing DataSets
• AddDataItem Properties - A set of additional properties to push into the AddDataItem action calls that are made while adding any missing Data Items.
• EnterDataItem Properties - A set of additional properties to push into the EnterDataItem action calls that are made while entering data.
• SDC ID - The default is "Sample" but you can override the SDC Id here to handle other SDC's

Does not work outside of LabVantage. No meta data would be created in LabVantage.

LIMS CI Migrations	Top

SDMS Also provides a set of components that are aimed to support migration of Talend Jobs written for LIMS CI to new SDMS Jobs. As such, some components are deprecated and do not perform any function other than allowing the Job to compile without error. These components show a yellow warning triangle on their icon in the lower right corner. Other components still function but its recommended to migrate them to the newer SDMS components. These components are shown with a green warning triangle in the bottom right corner of the icon.

Please refer to this document on how to migrate from LIMS CI to SDMS: LIMS CI Component Migration

tLabVantageConnection - deprecated

This component used to be used by LIMS CI to create a connection object to LabVantage as LIMS CI used to execute the Job outside of the Labvantage environment and use Webservices to communicate with LabVantage. In the new SDMS this is not required and hence is deprecated. The Job would still compile and build with this component inside it, but it will not do anything. The recommendation is to remove it when rebuilding the job.

tLabVantageCloseConnection - deprecated

Like the connection component this is no longer required and is deprecated functionality. The job would still compile and build with this component inside it, but it will not do anything. The recommendation is to remove it when rebuilding the job.

LIMSCI/tLabVantageLIMSCIFileInput - deprecated

This LIMS CI component managed import of CSV and Excel data into Talend. However in the later editions of Talend this functionality is provided with core Talend functionality which also provides nice graphical parsers. Therefore this component will no longer function in the Job and should be swapped for the tFileInputDelimited component.

LIMSCI/tLabVantageLIMSCIPostData - deprecated

This LIMS CI component managed the export of data from the instrument result parsing into a LIMS table ready for input into the system. The SDMS does no longer use this mechanism or staging area and instead directly executes the functionality in the LIMS with full traceability and the ability to examine the changes and re-execute them. Hence this component is no longer supported and should be migrated to the new tLabVantageResultGrid component which aims to do the same functionality and more.

tLabVantageExec - functioning

This LIMS CI Component will still continue to function in the SDMS built jobs what with more limited functionality than the new tLabVantageAction component. You should be able to do a direct migration from the tLabVantageExec to the new tLabVantageAction and make benefit of the more powerful support as well as the auto linking of created SDI's to the data capture.

Component Basic Settings:

• Schema - Columns to represent the properties for the action.
• Action Id - The action id
• Action Version Id - The action version id
• Immediate Execution - If checked then like the sync flag with tLabVantageAction the execution of the action will occur while processing the Job and its output will be immediately available. If unchecked then the actions will be added to a master action block which will be executed after the Job has completed.
• Number of rows before execution - Defaults to 100. This is the number of rows to build up in an action block until you execute the block.
• Retrieving output property - Check this to allow the output property to be used as a variable.

Development Mode Settings - Partially works outside of LabVantage. Only inline synchronous actions will be executed using SOAP based webservices.

tLabVantageInput - functioning

This LIMS CI Component will still continue to function in the SDMS built jobs what with more limited functionality than the new tLabVantageQueryInput or tLabVantageSDIInput components. You should be able to do a direct migration from the tLabVantageInput to the new tLabVantageQueryInput and make benefit of the more powerful support.

Component Basic Settings:

• Schema - The schema is a list of columns returned by your SQL. The code will populate these columns at run time once the SQL is executed.
• Query - The SQL query to execute in LabVantage.

Development Mode Settings - Works fully outside of LabVantage. Queries will be executed using SOAP based webservices.
