Descriptions

actionblock

Container that holds and defines a block of one or more Actions. The Application Server processes all Actions within an Action block as a single transaction.

Attributes
Attribute	Description	Required?
errorpage	Page that loads if any Action in the Action block fails.	No

action

Adds an Action to the Action Block.

Attributes
Attribute	Description	Required?
actionid	Identifier of the Action you want to execute.	Yes
actionversionid	Version number of the Action.	No
name	Identifier of the action tag. You can use the name attribute to reference the Action from within the Action block.	Yes

actionsetproperty

Sets the value of a property of an Action.

Attributes
Attribute	Description	Required?
propertyid	Identifier of the Action property.	Yes
value	Value of the Action property specified by propertyid.	Yes



actionblocksuccess

Executes all Actions in the Action Block. If all Actions in the Action Block successfully execute, this tag runs the statements between its start and end tags.

Attributes

None

actionblockfailure

Executes all Actions in the Action Block. If at least one of the Actions in the Action block failed to execute, this tag runs the statements between its start and end tags.

Attributes

None

Example

The following example displays the text "ACTION SUCCEEDED!" if the Action successfully executed, or "ACTION FAILED!" if the Action failed to execute.

<sapphire:actionblock>

<sapphire:action name="myaction" actionid="EditSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="keyid1" value="S-01"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="The first Sample"/>

</sapphire:action>

<sapphire:action name="myaction2" actionid="EditSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="keyid1" value="S-02"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="The second Sample"/>

</sapphire:action>

<sapphire:actionblocksuccess>

ACTION SUCCEEDED!

</sapphire:actionblocksuccess>

<sapphire:actionblockfailure>

ACTION FAILED!

</sapphire:actionblockfailure>

</sapphire:actionblock>



actiongetproperty

Retrieves the value of a property of an Action within the Action block.

Attributes
Attribute	Description	Required?
name	Identifier of the action tag that executes the Action having the property value you want to retrieve.	Yes
propertyid	Identifier of the Action property that has the value you want to retrieve.	Yes

Example

The following example adds a Project SDI, adds a Sample SDI, then associates the Project to the Sample (that is, for the relevant record of the Sample SDC, adds the Project Id to the u_projectid column). If the Action Block successfully executes, the page displays "The Actions successfully executed. Project [projectid] has been associated with Sample [sample1]", where [projectid] and [sample1] are the Project and Sample identifiers. In this example, the key [projectid] is specified ("test_project") and the key [sample1] is automatically generated. This example also demonstrates how to pass values to variables.

As stated in the Processing section, the Application Server executes all Actions in the Action Block if it encounters the actionblocksuccess or actionblockfailure tag before it encounters the closing tag for the Action Block (</sapphire:actionblock>). Note in the following example that we must use the actiongetproperty tag to retrieve the value of "newkeyid1" only after <sapphire:actionblocksuccess> executes the Actions. This is because we want to retrieve the values of the variables [projectid] and [sample1]. If we tried to retrieve the values without enclosing actiongetproperty within the actionblocksuccess tag, there would be no value to retrieve because the Actions would not yet have executed. We would retrieve only the variable names, i.e., [projectid] and [sample1].

<sapphire:actionblock>

<sapphire:action name="add Project" actionid="AddSDI" >

<sapphire:actionsetproperty propertyid="sdcid" value="Project"/>

<sapphire:actionsetproperty propertyid="keyid1" value="test_project"/>

<sapphire:actionsetproperty propertyid="keyid2" value="(null)"/>

<sapphire:actionsetproperty propertyid="keyid3" value="(null)"/>

<sapphire:actionsetproperty propertyid="projectdesc" value="Test block properties"/>

</sapphire:action>

<sapphire:action name="add Sample" actionid="AddSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="Associate Project [projectid]"/>

<sapphire:actionsetproperty propertyid="u_projectid" value="[projectid]"/>

<sapphire:actionsetproperty propertyid="newkeyid1" value="[sample1]"/>

</sapphire:action>

<sapphire:actionblocksuccess>

The Actions successfully executed.<br>

Project <b><sapphire:actiongetproperty name="add Project" propertyid="newkeyid1"/></b>

has been associated with Sample <b><sapphire:actiongetproperty name="add Sample" propertyid="newkeyid1"/></b>.

</sapphire:actionblocksuccess>

<sapphire:actionblockfailure>

The Action Block failed.

</sapphire:actionblockfailure>

</sapphire:actionblock>



actionsetblockproperty

Sets the value of a property of an Action block.

Attributes
Attribute	Description	Required?
propertyid	Identifier of the Action block property.	Yes
value	Value of the Action block property specified by propertyid.	No
actionpropertyid	Identifier of a property of an Action in the Action block. This lets you set the value of the Action property to the value of the Action block property.	No

actiongetblockproperty

Retrieves the value of a property of an Action block.

Attributes
Attribute	Description	Required?
propertyid	Identifier of the Action block property that has the value you want to retrieve.	Yes

Example

The following example edits two Sample SDIs within a single transaction. In this example, both Project and Sample keys are automatically generated.

Note that this example contains two actionsetblockproperty tags.

The first actionsetblockproperty tag demonstrates basic functionality. This tag has the identifier "test". The value of this block property is set to "test_value". In the actionblocksuccess tag, we retrieve this value with the actiongetblockproperty tag <sapphire:actiongetblockproperty propertyid="test"/>.

The second actionsetblockproperty tag has the identifier "projectid". This time, we set the actionpropertyid attribute to "newkeyid1", which is the Output Property of the AddSDI Action, i.e., it returns the identifier of the Project SDI you have added. Again in the actionblocksuccess tag, we retrieve the value of "newkeyid1" with the tag <sapphire:actiongetblockproperty propertyid="projectid"/> (calling the actionsetblockproperty by its identifier "projectid").

Note that this example also uses the ActionProcessor class to retrieve the value of the errorstack in the event of unsuccessful execution.

<sapphire:actionblock>

<sapphire:actionsetblockproperty propertyid="test" value="test_value"/>

<sapphire:action name="add Project" actionid="AddSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Project"/>

<sapphire:actionsetproperty propertyid="projectdesc" value="Test block properties" />

<sapphire:actionsetblockproperty propertyid="projectid" actionpropertyid="newkeyid1"/>

</sapphire:action>

<sapphire:action name="add Sample1" actionid="AddSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="added for project [projectid]"/>

<sapphire:actionsetproperty propertyid="u_projectid" value="[projectid]"/>

<sapphire:actionsetproperty propertyid="newkeyid1" value="[sample1]"/>

</sapphire:action>

<sapphire:action name="add Sample2" actionid="AddSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="added for project [projectid]" />

<sapphire:actionsetproperty propertyid="u_projectid" value="[projectid]"/>

<sapphire:actionsetproperty propertyid="newkeyid1" value="[sample2]"/>

</sapphire:action>

<sapphire:action name="Edit Samples" actionid="EditSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="keyid1" value="[sample1];[sample2]"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="changed for project [projectid] again"/>

</sapphire:action>

<sapphire:actionblocksuccess>

The Actions successfully executed.<br>

Projectid: <b><sapphire:actiongetproperty name="add Project" propertyid="newkeyid1"/></b><br>

Sample1Id: <b><sapphire:actiongetproperty name="add Sample1" propertyid="newkeyid1"/></b><br>

Sample2Id: <b><sapphire:actiongetproperty name="add Sample2" propertyid="newkeyid1"/></b><br>

Sample Description: <b><sapphire:actiongetproperty name="add Sample1" propertyid="sampledesc"/></b><br>

Block Property ProjectId: <b><sapphire:actiongetblockproperty propertyid="projectid"/></b><br>

Block Property test: <b><sapphire:actiongetblockproperty propertyid="test"/></b><br>

</sapphire:actionblocksuccess>

<sapphire:actionblockfailure>

The Action Block failed.<br>

<%= actioninfo.getErrorStack( "<br>" ) %><br>

</sapphire:actionblockfailure>

</sapphire:actionblock>

If the Actions successfully execute, the page displays:

The Actions successfully executed.
Projectid: P-020222-0014
Sample1Id: S-020222-00018
Sample2Id: S-020222-00019
Sample Description: added for project P-020222-0014
Block Property ProjectId: P-020222-0014
Block Property test: test_value

Recall that all keys were automatically generated.



propertyvalue

Retrieves the value of an existing property defined anywhere within a page.

Attributes
Attribute	Description	Required?
propertyid	Identifier of the property having the value you want to retrieve.	Yes
scope	Group of items through which to search for the propertyid. Possible values: request searches through URLs and submissions page searches through LabVantage Web Page Properties session searches through LabVantage Profile Properties (applicable to the current Named User in the current LabVantage session) full (default) searches through all groups (request, page, and session) in that order	No

Example

The tag

<sapphire:propertyvalue propertyid="keyid1"/>

is equivalent to the following Java statement, which uses the getProperty method in the PageTagInfo class:

<%=pageinfo.getProperty("keyid1")%>

Both of these retrieve the value of the property "keyid1". There are times when you would use the Java statement rather than the tag. For example, you cannot use a tag as a property value of another tag. If you want to use the property value of one tag as the property value of another, you must do one of the following:

Recommendation for LabVantage DM0204 and later

The propertyvalue tag has not been offically deprecated. However, beginning with LabVantage DM0204, we recommend using the JSTL "out" tag in place of the LabVantage propertyvalue tag. For example, use

<c:out value="${pagedata.keyid1}" />

rather than

<sapphire:propertyvalue propertyid="keyid1"/>

forward

Redirects to another page by submitting a form to the client.

Attributes
Attribute	Description	Required?
id	Identifier of the form that the tag generates.	No
action	Page that loads when the forward tag executes. Specify this value using the Request Controller command-value pairs, but do not include the Request Controller variable. For example: action="command=file&file=tags/action1.jsp"	No
method	Specifies form execution method. Possible values: post (default) Sends data to the Application Server in a data body rather than as part of the URL. get Appends arguments to the URL as if they were part of a query.	No
message	Message that displays then the forward tag executes.	No
autosubmit	A value of "true" (default) loads the page specified by the action attribute (above). A value of "false" displays an intermediate page before redirecting.	No

Example

The following example loads the page action1.jsp if the Action named "myaction" successfully executes.

<sapphire:actionblock>

<sapphire:action name="myaction" actionid="EditSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="keyid1" value="S-01"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="The first Sample"/>

</sapphire:action>

<sapphire:actionblocksuccess>

<sapphire:forward action="command=file&file=tags/action1.jsp">

</sapphire:forward>

</sapphire:actionblocksuccess>

</sapphire:actionblock>



forwardsetproperty

Creates a property of a forward tag and sets its value.

Attributes
Attribute	Description	Required?
propertyid	Identifier of the forward tag property.	Yes
value	Value of the forward tag property specified by propertyid.	Yes

Example

The following example is an extension of the previous example of the forward tag. The forward tag loads the page action1.jsp if the Action named "myaction" successfully executes. The forwardsetproperty tag then creates the property named "status" and sets its value to "Status Updated".

<sapphire:actionblock>

<sapphire:action name="myaction" actionid="EditSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="keyid1" value="S-01"/>

<sapphire:actionsetproperty propertyid="sampledesc" value="The first Sample"/>

</sapphire:action>

<sapphire:actionblocksuccess>

<sapphire:forward action="command=file&file=action1.jsp">

<sapphire:forwardsetproperty propertyid="status" value="Status Updated"/>

</sapphire:forward>

</sapphire:actionblocksuccess>

</sapphire:actionblock>

Assuming the action successfully executed, the page action1.jsp loads. If action1.jsp contains the code

<%=pageinfo.getProperty( "status" )%>

action1.jsp displays "Status Updated", which is the value of the forward tag's "status" property.



pagelog

Inserts a hyperlink into the Recent Items section of the Sidebar.

Attributes
Attribute	Description	Required?
title	Hyperlinked text to display in Recent Items.	Yes
tip	Tip to display when the mouse cursor is over the title.	No

Example

The following example inserts the hyperlink "Data Entry" into Recent Items.

<sapphire:pagelog title="Data Entry Page" tip="Data Entry">

</sapphire:pagelog>



pagelogsetproperty

Defines the functionality of a pagelog hyperlink by creating a pagelog property and setting its value.

Attributes
Attribute	Description	Required?
propertyid	Identifier of the pagelog property.	Yes
value	Value of the pagelog property defined by the property id.	Yes

Example

The following example is an extension of the previous pagelog example. The pagelog tag inserts the hyperlink "Data Entry" into Recent Items. When the user clicks the hyperlink, the page "data_entry.jsp" loads.

<sapphire:pagelog title="Data Entry Page" tip="Data Entry">

<sapphire:pagelogsetproperty propertyid="keyid1" value="command=file&file=data_entry.jsp"/>

</sapphire:pagelog>





Descriptions

page

This is a mandatory tag for all JSPs. You must add it to a JSP in order to use all other LabVantage Custom Tags.

This tag exposes the PageTagInfo class, which allows values of the following properties to be passed to a page:

• Page properties (from other pages).
• Request properties (submitted from a form or URL).
• Session properties (information about the current user).

Attributes
Attribute	Description	Required?
layout	If you use a Layout to define the framework in which your page resides, this attribute points to the page layout. This can be either of the following: • Location of the layout JSP, e.g., layout="WEB-CORE/layouts/standard/standardlayout.jsp" • Reference to the JSTL object for the layout element type, e.g., layout="${layout.objectname}" This gets the reference to the layout page from the JSTL object that provides layout information. See the pagecontent and pagearea tags, plus the Example provided with them. These examples use the reference to the JSTL object.	No
expirepage	A value of "true" will expire all pages immediately. This means you will not be able to access the JSP if you go back to it from another page in the browser. A value of "false" will never expire the page. You will be able to access the JSP if you go back to it from another page in the browser. The default value is "false".	No
module1	Specifies the Module that can be accessed from this page. For example, if you want access to the Security Module: <sapphire:page layout="${layout.objectname}" module="Security"> The page tag throws an error if the User is not assigned to the specified Module.	No
pagelogtitle	Enables the "Recent Items" history of Web pages. The pagelogtitle is the name of the log in the WebPageLogtitle table, which is referenced by the WebPageLog table.	No

1

You can also control access to a Module through a JSTL variable. The RequestManager gets and caches Modules that a User (including the system user) can access. These are set up as a JSTL expression. For example, <c:if test="${hasModule.Security}">....</c:if> evaluates the body of the tag only if the expression is true; that is, only if the current user can access the Security Module.



pagecontent

This tag works only if you use the pagearea tag with it (see the Example provided with the pagearea tag).

The body of this tag (whatever is between its start and end tags) is inserted into a pagearea tag with a matching "name" attribute. The pagearea tag must be in the layout JSP defined by the page tag.

Attributes
Attribute	Description	Required?
name	Identifier of the pagearea tag that will accept the body of the pagecontent tag.	Yes
file	If you want to insert a JSP file into the pagearea tag (rather than the body of the pagecontent tag), specify the filename here.	No
iframe	A value of "true" inserts an iframe into the pagearea tag, then inserts the body of the pagecontent tag into the iframe.	No
iframewidth	Width of the iframe in pixels (use only if iframe is "true").	No
iframeheight	Height of the iframe in pixels (use only if iframe is "true").	No
iframeborder	A value of "true" inserts a border around the iframe (use only if iframe is "true").	No
layout	A value of "false" renders the body of the pagecontent tag on the layout page if no pagearea tag with a matching "name" is found.	No

pagearea

This tag works in conjunction with the page and pagecontent tags (see the following Example).

When placed in the layout object defined by the page tag, pagearea accepts the body of a pagecontent tag with a matching "name" attribute.

Attributes
Attribute	Description	Required?
name	Identifier of the pagearea tag that will accept the body of the pagecontent tag.	Yes
undefinedtext	Text inserted into the pagearea if nothing is defined within the body of the pagecontent tag.	No

Example

The following diagram shows how pagecontent and pagearea work to transfer contents from mypage.jsp to the layout JSP.

Note the layout attribute, which points to the JSP asociated with the page layout. The property objectname is the thing that defines its object. In this case, objectname defines the JSP associated with the layout (layout.jsp). See JSTL Objects in the Web Page Designer for more information.



pageif

In a layout JSP, tests to determine if a page area is defined by a pagearea tag. This lets you conditionally do something else if a page area is undefined.

Attributes
Attribute	Description	Required?
test	Value that will return "true" if a pagearea tag with the specified "name" is found (next attribute below), or "false" if not.	Yes
name	Identifier of the pagearea tag for which to search.	Yes

Example

The following excerpt executes the pagecontent tag if a pagearea tag named "content" exists in the layout object.

<sapphire:page layout="${layout.objectname}">

<sapphire:pageif test="areadefined" name="content"/>

<%

if (areadefined) {

<sapphire:pagecontent name="content">

.

.

.

</sapphire:pagecontent>

} else {

%>

Page area undefined.

<%}

%>

.

.

</sapphire:page>

setpropertytree

Exposes a Property Tree as an instance of a JSTL object. This lets you use JSTL to retrieve values of all property-value pairs from a node, including all it has inherited from other nodes.

Attributes
Attribute	Description	Required?
var	Name you want to assign to the JSTL object that will be used to retrieve the properties.	Yes
file	Name of the XML file that contains the Property Tree.	No
node	Node from which you want to retrieve property values.	No

Example

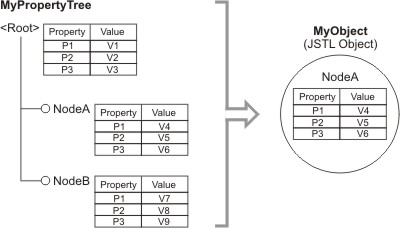

The file MyPropertyTree.xml contains the Property Tree shown at the left below. The following example makes a JSTL Object called MyObject to retrieve the reconciled property-value pairs from NodeA, which includes all inherited from the <Root>.

<sapphire:setpropertytree var="MyObject" file="MyPropertyTree.xml" node="NodeA"/>





You can then use JSTL to reference the object and get the retrieved property values. For example,

<c:out value="${MyObject.P3}"/>

returns V6 (the value of property P3 from NodeA).

By setting only the var attribute, you can also create an empty JSTL object. For example,

<sapphire:setpropertytree var="NewObject"/>

creates the empty NewObject. You can then populate it using

<c:set target="${NewObject}" property="color" value="white"/>

and get the property value with

<c:out value="${NewObject.color}"/>



setpropertylist

Exposes a Property List as an instance of a JSTL object. This lets you use JSTL to retrieve values of all property-value pairs from the list. The functionality is similar to setpropertytree, except this tag works with a single Property List rather than a node of a Property Tree.

Attributes
Attribute	Description	Required?
var	Name you want to assign to the JSTL object that will be used to retrieve the properties.	Yes
file	Name of the XML file that contains the Property List.	No

Examples

You can use the file attribute to specify an XML file containing the Property List, or include the XML within the tag.

Example using the file attribute:

The file MyPropertyList.xml contains a Property List. The following example makes a JSTL Object called MyObject to retrieve the property-value pairs from the list.

<sapphire:setpropertylist var="MyObject" file="MyPropertyList.xml"/>

You can then use JSTL to reference the object and get the retrieved property values. For example, if one of the properties in the list is color,

<c:out value="${MyObject.color}"/>

returns the value of the color property.



Example of including the XML within the tag:

The following example creates a JSTL Object called sampleconfig and populates it with the Property List defined by the XML within the tag body.

<sapphire:setpropertylist var="sampleconfig">

<propertylist>

<property id="sdcid">Sample</property>

<property id="columns" type="collection">

<collection>

<propertylist>

<property id="columnid">s_sampleid</property>

</propertylist>

<propertylist>

<property id="columnid">sampledesc</property>

</propertylist>

<propertylist>

<property id="columnid">batchid</property>

</propertylist>

</collection>

</property>

</propertylist>

</sapphire:setpropertylist>

Then, the sdimaint tag can retrieve the property values from the sampleconfig object for use in a Maint Form:

<sapphire:page layout="layout.objectname">

<sapphire:pagecontent name="content">

<sapphire:sdi sdcid="Sample" queryfrom="s_sample" querywhere="sampledesc like '%Resin2-Red%'">

<sapphire:sdirow>

<sapphire:sdimaint elementid="sampleconfig"/>

</sapphire:sdirow>

<sapphire:sdierror/>

</sapphire:sdi>

<sapphire:button text="Save" action="sdiSubmitFormCommand( 'save', 'sampleform' )"/>

</sapphire:pagecontent>

</sapphire:page>



file

Redirects to a JSP that will use values from a Property Tree you have previously exposed using the setpropertytree tag. This is useful in cases where you can not access the database.

Attributes
Attribute	Description	Required?
file	Name of the JSP you want to load.	Yes

Example

The following example redirects to listpage.jsp, and makes the values retrieved by the setproperty tag (referenced by the MyObject JSTL object) available for use on that page.

<sapphire:setpropertytree var="MyObject" file="MyPropertyTree.xml" node="NodeA"/>

<sapphire:file file="listpage.jsp"/>



tab

Renders a standardized "flat" tab you can use to break pages into logical sections. This tag provides the following features (see the Examples for details):

• Tab appearance is driven primarily from a CSS.
• After the tab has been rendered, you can programmatically change text or style attributes, as well as disable the tab.

Attributes
Attribute	Description	Required?
id	Identifier of the tab.	Yes
text	Text displayed in the tab.	No
appearance	If you want to define tab appearance using the LabVantage cascading style sheet (sapphire.css), specify "standard" (this is a class name in sapphire.css).	No
expandable	A value of "true" (default) allows the tab to be expanded (to show its content) and collapsed. A value of "false" disables this feature (the tab is always expanded).	No
expanded	If expandable (above) is "true", enter a value of "true" to expand the tab when the page opens.	No
collapsedtext	If expandable (above) is "true", this is the text displayed when the tab is collapsed.	No
tip	Popup tip to display when the mouse hovers over the tab.	No
width	Width of the tab in pixels. This defaults to the size of the tab.	No
bodywidth	Width of the content body (text area beneath the tab). The default is "100%".	No
bodyheight	Fixed height of the content body. If the content body is too long, scrollbars are added to it.	No
highlight	A value of "true" (default) enables tab highlighting (color change in response to mouseover). A value of "false" does not provide highlighting.	No

Examples

Basic Examples

For brevity, the following examples are in a single table.

<table style="margin:20" cellspacing = "0" border="1" cellpadding="5">

<tr><td>

<%-- Standard Tab --%>

<sapphire:tab id="standard" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

<tr><td>

<%-- Expandable Tab (initially collapsed) --%>

<sapphire:tab id="collapsed" expandable="true" text="A Tab">

<p style="color:red">Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody</p>

</sapphire:tab>

</td></tr>

<tr><td>

<%-- Expandable Tab (initially expanded) --%>

<sapphire:tab id="expanded" expandable="true" expanded="true" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

<tr><td>

<%-- Customized Collapsed Text --%>

<sapphire:tab id="customtext" collapsedtext="Displayed when collapsed" expandable="true" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

<tr><td>

<%-- Wide Tab) --%>

<sapphire:tab width="120" id="widebutton" expandable="true" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

<tr><td>

<%-- No Highlighting --%>

<sapphire:tab id="highlight" expandable="true" highlight="false" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

<tr><td>

<%-- Tab with Tip --%>

<sapphire:tab id="tipbutton" tip="Don't talk to strangers" expandable="true" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

<tr valign="top"><td>

<%-- Custom Appearance --%>

<sapphire:tab id="methods" expandable="true" text="id=methods">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td><td>

<sapphire:button text="expandTab_methods( true );" action="expandTab_methods( true );" /><br>

<sapphire:button text="expandTab_methods( false );" action="expandTab_methods( false );" /><br>

<sapphire:button text="alert( isTabExpanded_methods() );" action="alert( isTabExpanded_methods() );" /><br><br>

<sapphire:button text="setCollapsedText_methods( 'New Text' );" action="setCollapsedText_methods( 'New Text' );" />

</td></tr>

<tr><td>

<sapphire:tab width="120" id="customappearance" appearance="mytab" expandable="true" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</td></tr>

</table>

<%-- body Width Demos --%>

<b>Standard tab body is 100% wide:</b><br>

<sapphire:tab id="standardbodywidth" expandable="true" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

<br><br>

<b>Custom body Width (500 px):</b><br>

<sapphire:tab id="custombodywidth" expandable="true" bodywidth="500" text="And finally...">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

Exposed JavaScript Functions

The tab tag exposes the following three JavaScript functions:

Function	Description
isTabExpanded_xxxxx() where xxxxx is the identifier of the tab.	Returns true or false, depending on whether or not the specified tab is expanded.
expandTab_xxxxx( true/false ) where xxxxx is the identifier of the tab.	Collapses or expands the specified tab.
setCollapsedText_xxxxx( text ) where xxxxx is the identifier of the tab.	Sets the text displayed when the tab is collapsed.

styles

styles control many appearance attributes of the tab. The Web Page Designer makes several styles avialable through the default sapphire.css. Alternatively, you can define your own styles, as long as you follow the conventions below.

A tab is composed of the following three regions, each with its own normal and highlight style:

tab	spacer
body

The following examples demonstrate definitions of styles in these regions:

/* Tab Element styles */
.tab_mytab	{ text-align: center; padding: 6; background-color: purple; border: 2px dashed red; border-bottom-style: none }
.tab_mytab_highlight	{ text-align: center; padding: 6; background-color: black; border: 2px solid sandybrown; border-bottom-style: none; color: yellow }
.tab_mytab_spacer	{ border-bottom: 2px dashed red; }
.tab_mytab_spacer_highlight	{ border-bottom: 2px solid black; }
.tab_mytab_body	{ padding: 5; border: 2px dashed red; border-top-style: none; }
.tab_mytab_body_highlight	{ padding: 5; border: 2px solid black; border-top-style: none; background-color: yellow}

Working Examples

To see a JSP containing working examples, look at WEB-CORE\testpages\tab.jsp.



tabgroup

Creates a group of tabs. The group contains individual tabs, each of which is rendered by the tab tag.

Attributes
Attribute	Description	Required?
id	Identifier of the tab.	Yes
appearance	If you want to define tab appearance using the LabVantage cascading style sheet (sapphire.css), specify "standard" (this is a class name in sapphire.css).	No
tip	Popup tip to display when the mouse hovers over the tab.	No
width	Width of the tab in pixels. This defaults to the size of the tab.	No
bodywidth	Width of the content body (text area beneath the tab). The default is "100%".	No
multitab	Switch that turns on/off tab group functionality. A value of "true" (default) renders tab groups.	No

Example

Tab groups are always expanded. Attributes of inner tabs are ignored. Each tab is rendered in a separate div and hidden/shown depending on the selected tab.

The maint Element contains a Group property that defines columns for each tab group.

<sapphire:tabgroup id="tabgroup">

<sapphire:tab id="tab01" text="A Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

<sapphire:tab id="tab02" text="B Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

<sapphire:tab id="tab03" text="C Tab">

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody<br>

Contentbody Contentbody Contentbody Contentbody Contentbody Contentbody

</sapphire:tab>

</sapphire:tabgroup>



button

Renders a standardized "flat" button, and provides the following features (see the Examples for details):

• The button can include text, an image, or both.
• Button appearance is driven primarily from a CSS.
• After the button has been rendered, you can programmatically change text, image, or style attributes, as well as disable the button.

Attributes
Attribute	Description	Required?
id	Identifier of the button.	Yes
appearance	If you want to define the overall button appearance using the LabVantage cascading style sheet (sapphire.css), specify one of the following class names in sapphire.css: Class Name Description standard Default button blue Default button with blue background	No
margin	If you want to define the button borders using the LabVantage cascading style sheet (sapphire.css), specify one of the following class names in sapphire.css: Class Name Description thin Default border if an image is displayed in the button. thick Default border if no image is displayed in the button. none No margin at the top, bottom, or sides of the button.	No
text	Text displayed in the button.	No
action	JavaScript function to execute when the button is clicked. Make certain an <%@include%> directive on your page specifies the location of your .js file.	Yes1
img	URL of an image to be displayed in the button.	No
imgposition	Location of the image on the button. Values are "left" (default) or "right" justified.	No
tip	Popup tip to display when the mouse hovers over the button.	No
width	Width of the button in pixels.	No
style	Additional attributes you have defined in your CSS (see styles below).	No
highlight	A value of "true" (default) enables button highlighting (color change in response to mouseover). A value of "false" does not provide highlighting.	No

1	The action attribute is not required to render the button, but the button won't do anything without a JavaScript function.

Examples

Basic Examples

These examples will work only with the appropriate styles defined (see styles below). The sapphire.css CSS is applied by default.

Standard text button:

<sapphire:button id="button1" text="Save" action="somefunction()" />

Standard image button:

<sapphire:button id="button2" img="images/save.gif" action="somefunction()" />

Standard button with image and text:

<sapphire:button id="button3" text="Save" img="images/save.gif" action="somefunction()" />

Blue button:

<sapphire:button id="button4" text="Save" img="images/save.gif" appearance="blue" action="somefunction()" />

Blue button with no hightlighting:

<sapphire:button text="Save" img="images/save.gif" appearance="blue" highlight="false" action="somefunction()" />

Blue button with no margin:

<sapphire:button text="Save" img="images/save.gif" appearance="blue" margin="none" action="somefunction()" />

Button with popup tip:

<sapphire:button text="Save" action="somefunction()" tip="click me please" />

Button 200 pixels wide:

<sapphire:button text="Save" action="somefunction()" width="200" />

Examples Using Dynamic Attributes

After the button has been rendered, you can programmatically change the following attributes client-side using the syntax shown below.

Clicking the following button changes the text of button1. Note that the refresh='Y' MUST be included in order for changes to take affect.

<sapphire:button text="Change Text" action="button1.text='new text';button1.refresh='Y'" />

Clicking the following button changes the image in button2.

<sapphire:button text="Change Image" action="button2.img='images/newimage.gif';button2.refresh='Y'" />

Clicking the following button changes the appearance (CSS class) of button3.

<sapphire:button text="Change Appearance" action="button3.appearance='blue';button3.refresh='Y'" />

Clicking the following button disables button 4. A disabled button does not respond to mouse events.

<sapphire:button text="Disable" action="button4.disabled=!button4.disabled" />

styles

styles control many appearance attributes of the button. The Web Page Designer makes several styles avialable through the default sapphire.css. Alternatively, you can define your own styles, as long as you follow these naming conventions:

Type of Attribute	Naming Convention	Description of style
New appearance	button_xxx	Button without highlighting
	button_xxx_highlight	Highlighted button
New margin	buttonmargin_xxx	Padding

Unless you use the above appearance and margin attributes to specify otherwise, the button looks for an appearance of "standard" and a margin of "thin" or "thick", depending on whether or not an image is displayed.

The following example styles demonstrate use of these conventions:

/* Button Element styles */
.button_standard	{ background: wheat; border:1 solid black; cursor:hand } /* Default style*/
.button_standard_highlight	{ background: sandybrown; border:1 solid black; cursor:hand }
.button_blue	{ background: lightsteelblue; border:1 solid black; cursor:hand }
.button_blue_highlight	{ background: royalblue; border:1 solid black; cursor:hand }
/* margin will default to 'thin' if there is an image, otherwise 'thick'*/
.buttonmargin_thin	{ padding-top: 2; padding-bottom: 2; padding-left:6; padding-right:6 }
.buttonmargin_thick	{ padding-top: 4; padding-bottom: 4; padding-left:6; padding-right:6 }
.buttonmargin_none	{ padding-top: 0; padding-bottom: 0; padding-left:0; padding-right:0 }

Working Examples

To see a JSP containing working examples, look at WEB-CORE\testpages\button.jsp.



wizard

Use this tag in each page of a wizard you have created. For a description of wizards, see Creating Custom Wizards in the Advanced Operations section of the Web Page Designer.



dataview

Renders a form showing data that is not necessarily specific to an SDI. Unlike SDI-specific tags (such as the sdilist, sdimaint, and ther Maint tags), the dataview tag can retrieve data from any columns of any tables, then render a form to display the data. This tag does not use any SDI mechanisms. As such, there is no need to use it within an sdi tag. Accordingly, it does have provide features you get with an SDI-specific tag, such as the ability to nest it within an sdiform tag and take advantage of that tag's features.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the topic Web Page Designer.	Yes
data	Type of data retrieved from the tables (see the example below).	Yes

Example

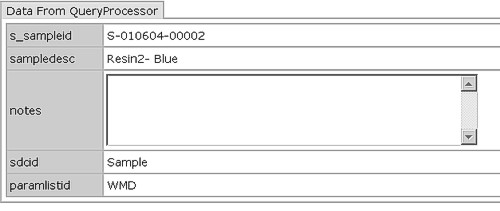

The following example shows three ways to use the dataview tag.

The Dataview Element ("dataview" is the identifier of the node) has been setup in the Web Page Designer to display the five retrieved columns: s_sampleid, sampledesc, notes, sdcid, and paramlistid. Note that sdcid and paramlistid are pulled from detail tables. Nonetheless, specify just the column names when you define them in the Web Page Designer.

The first technique (under the tab labeled "Data From QueryProcessor") renders data retrieved from the query executed by the QueryProcessor instance, using "dataset" to represent the data retrieved with the getSqlDataSet() method.

The second technique (under the "Data From Query Tag" tab) gets the dataview from the "querydata" JSTL object.

The third technique (under the "Data From SDITag" tab) uses the sdi tag to retrieve the data through the "sdidata" JSTL object.

The results for each are the same as the "Data From QueryProcessor" form shown below the example.

<%

String server = application.getInitParameter( "nameserverlist" );

String connectionid = pageinfo.getConnectionId();

sapphire.accessor.QueryProcessor queryProcessor = new sapphire.accessor.QueryProcessor( server, connectionid );

String sql = "select s_sample.s_sampleid, s_sample.sampledesc, s_sample.notes, sdidata.sdcid, sdidata.paramlistid from s_sample, sdidata where s_sampleid = sdidata.keyid1 and rownum < 2";

sapphire.util.DataSet ds = queryProcessor.getSqlDataSet( sql );

pageContext.setAttribute( "dataset", ds );

%>

<br/>

<sapphire:tab id="maintform" bodywidth="600" text="Data From QueryProcessor">

<sapphire:dataview elementid="dataview" data="${dataset}"/>

</sapphire:tab>

<br/>

<sapphire:tab id="maintform" bodywidth="600" text="Data From Query Tag">

<sapphire:query sql="select s_sample.s_sampleid, s_sample.sampledesc, s_sample.notes, sdidata.sdcid, sdidata.paramlistid from s_sample, sdidata where s_sampleid = sdidata.keyid1 and rownum < 3">

<sapphire:dataview elementid="dataview" data="${querydata}"/>

</sapphire:query>

</sapphire:tab>

<br/>

<sapphire:tab id="maintform" bodywidth="600" text="Data From SDITag">

<sapphire:sdi sdcid="Sample" queryfrom="s_sample">

<sapphire:dataview elementid="dataview" data="${sdidata.primary}"/>

</sapphire:sdi>

</sapphire:tab>





toolbar

Renders a standardized toolbar. If you want to use a Toolbar Element defined in Web Page Designer, specify the elementid of the Toolbar. Alternatively, you can use toolbaritem tags to define the contents of the toolbar. In this case you need not enter an elementid, since you are using the toolbaritem tags rather than a Toolbar Element in the Web Page Designer (see toolbaritem below).

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example for toolbaritem). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer.	Yes
insertposition	Position of the rendered toolbar with respect to the page.	No

Example

The following example renders the Toolbar Element defined in the Web Page Designer as "MyToolbarElement".

<sapphire:toolbar elementid="MyToolbarElement"/>



toolbaritem

Renders an item contained in a toolbar. You can currently use the button tags as toolbaritems.

Attributes

None.

Examples

The following example uses the button tag to render a toolbar containing four buttons. The JavaScript functions are in various *.js files distributed throughout the application.

<sapphire:toolbar>

<sapphire:toolbaritem>

<sapphire:button text="Get Primary" action="alert(getSelectedPrimary())"/>

</sapphire:toolbaritem>

<sapphire:toolbaritem>

<sapphire:button text="Get Datasets" action="alert(getSelectedDatasets())"/>

</sapphire:toolbaritem>
<sapphire:toolbaritem>

<sapphire:button text="Get Dataitems" action="alert(getSelectedDataitems())"/>

</sapphire:toolbaritem>
<sapphire:toolbaritem>

<sapphire:button text="Save" action="sdiSubmitFormCommand( 'save', 'dataentrylist' )"/>

</sapphire:toolbaritem>

</sapphire:toolbar>



ping

Prevents an RSet from timing out.

Attributes
Attribute	Description	Required?
rsetlist	Identifier of the RSet.	Yes

Example

RSet() methods (DAMProcessor class) lock the database resource for one minute, after which the RSet times out and releases the lock. For example, if you want to keep the resource locked while the user fills out forms on multiple pages, insert a ping tag in each page, e.g.,

<sapphire:ping rsetlist="${rsetid}" />

In the last page, you can then unlock the resource using the clearRSet() method.

The value of rsetlist is the same value you get by setting a string variable to rsetidholder.value.





Descriptions

query

Container that defines a SQL statement and holds tags that execute it. This tag exposes the queryinfo class.

Attributes
Attribute	Description	Required?
sql	SQL statement that defines the query you want to run.	Yes
nullvalue	Value to return if a column value in the result set is null. This is useful to maintain page formatting (specify   if the query returns a null value).	No
errorpage	Page that loads if the query fails.	No
var	Identifier of the JSTL variable that defines data associated with the tag. The default value is "querydata". You need not explicitly specify this unless you have multiple query tags in the same JSP (you must discriminate among them). See Example of var and varStatus with query and queryrow Tags.	No
varStatus	Identifier of the variable used to determine the status of data associated with the tag. The default value is "querystatus". You need not explicitly specify this unless you have multiple query tags in the same JSP (you must discriminate among them). Use this in conjunction with the "var" attribute (above). See Example of var and varStatus with query and queryrow Tags.	No

queryrow

Loops through each row of the query result set, repeating the loop n times and executing all HTML between the begin and end tag.

Attributes
Attribute	Description	Required?
startrow	Row number from which you want to start retrieving values.	No
endrow	Row number you want to stop retrieving values. This value is inclusive, i.e., a startrow of 5 and endrow of 10 retrieves values from row 5 to row 10 (inclusive) of the queried table.	No
sort	Identifier of the column by which you want the data sorted. This attribute sorts in ascending or descending alphabetical order. To specify the order, append an "a" or "d" to the value. For example, sort="project a" is ascending, sort="status d" is descending. You can do multiple sorts, e.g., sort="project a, status d".	No
var	Identifier of the JSTL variable that defines data associated with the current row. The default value is "currentRow". See Example of var and varStatus with query and queryrow Tags. You need not explicitly specify this unless you have multiple queryrow tags (you must discriminate among them).	No

queryvalue

Retrieves data from a column in the current row.

Attributes
Attribute	Description	Required?
Note: You can specify either columnid or col, but not both.
columnid	Identifier of the column containing data you want to retrieve.	Yes
col	Number of the column containing data you want to retrieve. Use this if you do not know the columnid (above).	Yes
display	Substitutes text in place of retrieved column values. For example, you could display "Received" if the retrieved value is "R", or "Scheduled" if the retrieved value is "S" as follows: display="R=Received;S=Scheduled"	No
nullvalue	Value to display if the column value is null. This is useful to maintain page formatting (specify   if the query returns a null value).	No

querygroup

Groups data within a query result set.

Attributes
Attribute	Description	Required?
sort	Identifier of the column by which you want the data sorted. This attribute sorts in ascending or descending alphabetical order. To specify the order, append an "a" or "d" to the value. For example, sort="project a" is ascending, sort="status d" is descending. You can do multiple sorts, e.g., sort="project a, status d".	No
group	Identifier of the column or columns that you want to define as the group. For example, if group="s_sampleid", the group is composed of all values from the s_sampleid column. If specifying multiple columns, use a comma to separate each.	No

Example

The following example modifies the previous example to create a group composed of sorted values from the "s_projectid" column.

<sapphire:query sql="select * from s_sample" nullvalue="&#160;">

<sapphire:querygroup sort="s_projectid" group="s_projectid">

Project: <sapphire:queryvalue columnid="s_projectid"/>

<table border="1">

<sapphire:queryrow>

<tr>

<td><%=queryinfo.getCurrentRow()%></td>

<td><sapphire:queryvalue columnid="s_sampleid"/></td>

<td><sapphire:queryvalue columnid="sampledesc"/></td>

<td><sapphire:queryvalue columnid="projectid"/></td>

<td><sapphire:queryvalue columnid="samplestatus" display="R=Received;S=Scheduled"/></td>

<td><sapphire:queryvalue col="1"/></td>

</tr>

</sapphire:queryrow>

</table>

</sapphire:querygroup>

</sapphire:query>



queryheader

Retrieves the identifier of the current column. Use this tag inconjunction with the querycol tag (below).

Attributes

None



querycol

Defines columns for a query. This is useful to dynamically build HTML tables.

Attributes

None

Example

The next example creates a textarea in which you enter a SQL statement, and a "Go" button that submits the query. The query results are then displayed in an HTML table. The queryheader tag displays the columnids of all columns in the table, and the querycol tag builds the table columns.

<form method="post">

Enter select statement below:

<table border="1" width="100%">

<tr height="50">

<td valign="top">

<textarea id="sqltext" name="sql" accesskey="S" wrap="virtual" style="width:100%; height:100%"><%=pageinfo.getProperty( "sql" )%>

</textarea>

</td>

</tr>

<tr height="20">

<td>

<input type="submit" value="Go" accesskey="G">

</td>

</tr>

<tr height="*" valign="top">

<td>

<% if ( pageinfo.getProperty( "sql" ).length() > 0 ) { %>

<sapphire:query sql="<%=pageinfo.getProperty( \"sql\" )%>" nullvalue="&#160;">

<table border="1">

<tr>

<sapphire:querycol>

<th>

<sapphire:queryheader/>

</th>

</sapphire:querycol>

</tr>

<sapphire:queryrow>

<tr>

<sapphire:querycol

<td>

<sapphire:queryvalue/>

</td>

</sapphire:querycol>

</tr>

</sapphire:queryrow>

</table>

<%=queryinfo.getRowCount()%> row(s) retrieved.

</sapphire:query>

<% } else { %>

No query results!

<% } %>

</td>

</tr>

</table>

</form>

Descriptions

reftype

Container that holds and defines a block of tags that retrieve values from a Reference Type.

Attributes
Attribute	Description	Required?
reftypeid	Identifier of the Reference Type containing values you want to retrieve.	Yes
selected	Value that is initially selected when you load Reference Type values into a selectable input element. Use this in conjunction with the reftypeselected tag (see the example for reftypeselected).	No
errorpage	Page that loads if the tag does not successfully retrieve a value.	No
var	Identifier of the JSTL variable that defines data associated with the tag. The default value is "reftypedata". You need not explicitly specify this unless you have multiple reftype tags in the same JSP (you must discriminate among them). See Example of var and varStatus with reftype and reftyperow Tags.	No
varStatus	Identifier of the variable used to determine the status of data associated with the tag. The default value is "reftypestatus". You need not explicitly specify this unless you have multiple reftype tags in the same JSP (you must discriminate among them). Use this in conjunction with the "var" attribute (above). See Example of var and varStatus with reftype and reftyperow Tags.	No

reftyperow

Loops through each Reference Type value, repeating the loop n times and executing all HTML between the begin and end tag.

Attributes
Attribute	Description	Required?
startrow	Row number from which you want to start retrieving values.	No
endrow	Row number you want to stop retrieving values. This value is inclusive, i.e., a startrow of 5 and endrow of 10 retrieves values from row 5 to row 10 (inclusive) of the queried table.	No
sort	Identifier of the column by which you want the data sorted. This attribute sorts in ascending or descending alphabetical order. To specify the order, append an "a" or "d" to the value. For example, sort="project a" is ascending, sort="status d" is descending. You can do multiple sorts, e.g., sort="project a, status d".	No
var	Identifier of the JSTL variable that defines data associated with the current row. The default value is "currentRow". See Example of var and varStatus with reftype and reftyperow Tags. You need not explicitly specify this unless you have multiple queryrow tags (you must discriminate among them).	No

reftypevalue

Retrieves data from a column in the current row of the Reference Type.

Attributes
Attribute	Description	Required?
columnid	Identifier of the column containing data you want to retrieve. The default value is refvalueid.	No

Example

The following example retrieves values from the "refvalueid" and "refvaluedesc" columns of the "Address Function" Reference Type.

<sapphire:reftype reftypeid="Address Function">

<table border="1">

<sapphire:reftyperow>

<tr>

<td><sapphire:reftypevalue/></td>

<td><sapphire:reftypevalue columnid="refvaluedesc"/></td>

</tr>

</sapphire:reftyperow>

</table>

</sapphire:reftype>



Example of var and varStatus with reftype and reftyperow Tags

In the following tag, "reftypedata" identifies the JSTL variable for data associated with the tag (in this case, data returned from the reftype), and "reftypestatus" (the variable representing reftypedata) will be tested for certain conditions. As mentioned in the attribute descriptions above, both reftypedata and reftypestatus are default values for the var and varStatus attributes, and are shown here for demonstration purposes. Note the JSTL initial caps convention for varStatus.

<sapphire:reftype reftypeid="List of Colors"> var="reftypedata" varStatus="reftypestatus">

The example below returns the string if the query does not return any rows.

<c:if test="${reftypestatus.hasNoRows}">

No rows found for the reftype.

</c:if>

The example below shows three techniques to display the same data in each of three table columns on the page. Data are displayed only if the query has returned row data.

The first column displayed in the table uses the most basic technique (simply display the column data using reftyperow iteration).

The second column in the table substitutes a JSTL tag (using the variable reftyperow) in place of the reftypevalue tag.

The third column in the table uses pure JSTL to iterate through the retrieved data.

<c:if test="${reftypestatus.hasRows}">

<table>

<tr valign="top">

<td>

<sapphire:reftyperow>

<sapphire:reftypevalue columnid="colorid"/><br/>

</sapphire:reftyperow>

</td>

<td>

<sapphire:reftyperow var="reftyperow">

<c:out value="${reftyperow.colorid}"/><br/>

</sapphire:reftyperow>

</td>

<td>

<c:forEach items="${reftypedata}" var="reftyperow" varStatus="rowstatus">

<c:out value="${reftyperow.colorid} - row ${rowstatus.count}"/><br/>

</c:forEach>

</td>

</tr>

</table>

</c:if>

</sapphire:reftype>



reftypeselected

Specifies that the value for an HTML option tag is the initially selected value.

Attributes
Attribute	Description	Required?
columnid	Identifier of the column containing the value you want to be initially selected.	No
selectedtext	Text string you want to write as HTML text. The default is SELECTED (see the example).	No

Example

The following example retrieves all values in the Status Reference Type, then creates an HTML select list containing the values. The reftype tag declares that the initially selected value is "Received". The reftypeselected tag in the HTML option tag contains no attributes. This means that the default text SELECTED is written to the client HTML page for the attribute of the option tag. The option tag with the reftypeselected tag within it therefore becomes the initially selected option which, according to the reftype tag, is"Received".

Assuming the Status Reference Type contains values of Received, Scheduled, and Late, the code above generates the HTML



Descriptions

sdi

Loads multiple result sets depending upon the Result Set Type specified by the request attribute.

When this tag executes a query, it retrieves (by default) data in the form of a single result set called the "primary". All subsequent tags between the beginning and end tag work with data from the "primary" result set. The "request" attribute of this tag lets you retrieve other result sets associated with the SDI.

Attributes
Attribute	Description	Required?
sdcid	Identifier of the SDC relevant to the SDI.	Yes
Note: You can retrieve data by specifying SDI KeyId, a SQL query, or a LabVantage Query. Unless you have specified a value of "false" for the "retrieved" attribute (below), you must choose one of these three methods (they are mutually exclusive). The only case in which they are not mutually exclusive is when you use the mergequerywhere attribute.
To retrieve data by specifying SDI KeyId:
keyid1	Key that uniquely identifies the SDI.	Yes
keyid2	For multi-key SDIs, second key that uniquely identifies the SDI.	No
keyid3	For multi-key SDIs, third key that uniquely identifies the SDI.	No
To retrieve data by specifying a SQL query:
queryfrom	From clause of the query.	Yes
querywhere	Where clause of the query.	No
queryorderby	OrderBy clause of the query.	No
To retrieve data by specifying a LabVantage Query:
queryid	Identifier of the LabVantage Query you want to run to retrieve SDI data. Use this attribute and (optionally) param1 through param5 below only if you want to use a LabVantage Query.	Yes
param1	First argument (if any) specified by the LabVantage Query.	No
param2	Second argument (if any) specified by the LabVantage Query.	No
param3	Third argument (if any) specified by the LabVantage Query.	No
param4	Fourth argument (if any) specified by the LabVantage Query.	No
param5	Fifth argument (if any) specified by the LabVantage Query.	No
showtemplates	LabVantage Queries exclude SDI Templates. Enter a value of "true" if you want the Query to retrieve SDI Templates. The default value is false.	No
Additional attributes:
errorpage	Page that loads if the query fails.	No
mergequerywhere	If you specify values for the queryid and querywhere attributes, a value of "yes" merges the two into a single query.	No
nullvalue	Value to display if the retrieved value is null. This is useful to maintain page formatting (specify   if the query returns a null value).	No
request	Lets you specify the Result Set Type, i.e., the type of data that is retrieved (from the SDI) in the result set. The default value is "primary", meaning data are retrieved from the primary result set (information specific to the SDI itself). You can also specify additional detail result sets. See Result Set Types at the end of this section for a list of values you can enter.	No
paramlistid	If you want to request a specific Data Set, specify the request attribute (above), and give it a value of "dataset" (this is the Result Set Type). Then, specify the Data Set(s) you want to retrieve in the result set. See "Example of Requesting Specific Data Sets". If you request multiple Data Sets for multiple SDIs, use the propsmatch attribute (below) to determine which Data Sets are retrieved for each SDI.	No
paramlistversionid
variantid
dataset
propsmatch	If you use the above properties to request multiple Data Sets for multiple SDIs, propsmatch determines which Data Sets are retrieved for each SDI. See "Example of propsmatch Usage".	No
primarylock	If you want to lock data returned in the "primary" result set, specify a value of "true"; otherwise, specify "false". See the example "Using the primarylock and datalock attributes".	No
datalock	If you want to lock data returned in the "dataset" result set, specify a value of "true"; otherwise, specify "false". See the example "Using the primarylock and datalock attributes".	No
lockoption	A value of "true" locks all data retrieved in all result sets. A value of "false" does not lock any retrieved data.	No
retrieve	A value of "false" prevents data from being retrieved ("true" is the default). In this case, the tag generates a dummy result set for all items and renders an empty form on the page.	No
retrievelimit	Maximum number of rows (records) to retrieve.	No
elementlist	One or more (comma-separated) element identifiers specified in an sdimaint, sdimaintworkflow, sdimaintdataset, sdimaintattachment, sdimaintspec, sdilist, or element tag. The values of "elementlist" must be the same as the "elementid" specified in these tags. The sdi tag will retrieve data from JSTL objects that define these element. See the aforementioned tag descriptions for examples. Also see JSTL Objects in the Advanced Operations section of the Web Page Designer.	See Note 1
var	Identifier of the JSTL variable that defines data associated with the tag. The default value is "sdidata". You need not explicitly specify this unless you have multiple sdi tags in the same JSP (you must discriminate among them). See Example of var and varStatus with sdi and sdirow Tags.	No
varStatus	Identifier of the variable used to determine the status of data associated with the tag. The default value is "sdistatus". You need not explicitly specify this unless you have multiple sdi tags in the same JSP (you must discriminate among them). Use this in conjunction with the "var" attribute (above). See Example of var and varStatus with sdi and sdirow Tags.	No
versionstatus	Value of the "versionstatus" column by which you want to filter the retrieved data. Use this only for versioned SDIs. For example, specify C if you want to retrieve only Current versions.	No

1	The elementlist attribute is mandatory only if you are using the sdimaint, sdimaintworkflow, sdimaintdataset, sdimaintattachment, sdilist, or element tag.



sdirow

Contains one or more sdivalue tags (or tags that render Elements) that define columns to query (see sdivalue below), and loops through all rows to retrieve these column values until the query is satisfied. The sdirow tag is not required when rendering Elements that do not require iteration of SDI data. For information about using sdirow with tags that render Elements, see Notes Concerning Tags that Render Elements.

Attributes
Attribute	Description	Required?
startrow	Row number from which you want to start retrieving values.	No
endrow	Row number you want to stop retrieving values. This value is inclusive, i.e., a startrow of 5 and endrow of 10 retrieves values from row 5 to row 10 (inclusive) of the queried table.	No
initrows	Number of blank rows to create (if desired).	No
data	Lets you specify the type of data that is retrieved from the SDI. The default value is "primary", meaning data are retrieved from the primary result set. Alternatively, you can specify a detail result set. See Result Set Types at the end of this section for a list of values you can enter to get data from detail result sets.	No
sort	Identifier of the column by which you want the data sorted. This attribute sorts in ascending or descending alphabetical order. To specify the order, append an "a" or "d" to the value. For example, sort="project a" is ascending, sort="status d" is descending. You can do multiple sorts, e.g., sort="project a, status d".	No
filter	Restricts retrieved data to the value you specify. For example, filter="projectid=MyProject" displays only Projects named MyProject.	No
templateid	If you have used the initrows attribute (above) to create blank rows, this defines the SDI Template that will be populated with the data you enter into the rows. In this case, you must specify a value of "primary" for the data attribute (above).	No
var	Identifier of the JSTL variable that defines data associated with the current row. The default value is "currentRow". See Example of var and varStatus with sdi and sdirow Tags. You need not explicitly specify this unless you have multiple sdirow tags (you must discriminate among them).	No

sdivalue

Retrieves data from a column in the current row. The sdivalue tag is not required when rendering Elements. For more information, see Notes Concerning Tags that Render Elements.

Attributes
Attribute	Description	Required?
columnid	Identifier of the column containing data you want to retrieve.	Yes1
data	Lets you specify the type of data that is retrieved from the SDI. The default value is "primary", meaning data are retrieved from the primary result set. Alternatively, you can specify a detail result set. See Result Set Types at the end of this section for a list of values you can enter to get data from detail result sets.	No
row	Lets you specify a row other than the current row.	No
find	Lets you find a row, e.g., find="s_sampleid=S1".	No
nullvalue	Value to display if the column value is null. This is useful to maintain page formatting (specify   if the query returns a null value).	No
display	Substitutes text in place of retrieved column values. For example, you could display "Received" if the retrieved value is "R", or "Scheduled" if the retrieved value is "S" as follows: display="R=Received;S=Scheduled"	No

1	The columnid attribute is not required when sdivalue is used with the sdicol tag.



sdiform

Generates an HTML form tag and allows updating of retrieved data.

Attributes
Attribute	Description	Required?
id	Identifier of the sdiform tag. You can use id to reference the sdiform tag from within the form.	No
errorpage	Page that loads if the form does not successfully retrieve data.	No
nextpage1	Page that loads after data in the form have been submitted to the server.	No

1

Note concerning the sdiformsuccess, sdiformfailure, and sdierror tags: If you do not specify a value for "nextpage" (or use "nextpage" to explicitly return to the current page): The current page will reload after data in the form have been successfully submitted. In this case, the sdiformsuccess and sdierror tags will execute. Use the sdiformfailure tag to trap errors if the submission has failed. If you use "nextpage" to load a different page after data are submitted: The sdiformsuccess and sdierror tags will not execute. If data have been successfully submitted, the "nextpage" you specify will load. If the submission has failed, a LabVantage error page will load.

Example

The following example creates an HTML form named "sampleform". When a user clicks the "Save" button, the onclick attribute passes the values "save" and "sampleform" to the JavaScript function "sdiSubmitFormCommand".

<sapphire:sdiform id="sampleform">

<sapphire:sdi sdcid="Sample" keyid1="S-01" nullvalue="&#160;">

<table border="1">

<sapphire:sdirow data="primary">

<tr>

<td><%=sdiinfo.getRowId( "primary" )%></td>

<td><sapphire:sdivalue columnid="s_sampleid"/></td>

<td><sapphire:sdiinput mode="input" columnid="sampledesc"/></td>

</tr>

</sapphire:sdirow>

</table>

</sapphire:sdi>

<p>&#160;</p>

<input type="button" value="Save" onclick="sdiSubmitFormCommand( 'save', 'sampleform' )">

</sapphire:sdiform>



The sdiSubmitFormCommand() function is a JavaScript function that submits the form. Its general form is shown below. On form submission, the value of the hidden field defined by __formcommand is passed along with the other form values. This script is in one of the js files in the Web Application (when this was written, it was in WEB-CORE\scripts\tags.js).

<script language="JavaScript">

function sdiSubmitFormCommand( cmd ) {

f = event.srcElement.form;

f.__formcommand.value = cmd;

f.submit();

}

</script>



Accessing Data After Submitting the Form

To make data available to other pages on the client following submission of the form, see Accessing Data After Submitting the Form in the description of the sdiinput tag.



sdiformsuccess

If the form transaction is successful, this tag can execute any of the following server-side code between its start and end tags:

You can not place any client-side code between the start and end tags, including text, JavaScript, or Java code that runs client-side.

See the note concerning use of this tag with the "nextpage" attribute of the sdiform tag.

Attributes

None

Example

If the form successfully submits the data in the following example, sdiformsuccess runs the Action Block containing the EditSDI Action.

<sapphire:sdiform id="sampleform">

<sapphire:sdi sdcid="Sample" keyid1="S-01" nullvalue="&#160;">

<table border="1">

<sapphire:sdirow data="primary">

<tr>

<td><%=sdiinfo.getRowId( "primary" )%></td>

<td><sapphire:sdivalue columnid="s_sampleid"/></td>

<td><sapphire:sdiinput mode="input" columnid="sampledesc"/></td>

</tr>

</sapphire:sdirow>

</table>

</sapphire:sdi>

<p>&#160;</p>

<input type="button" value="Save" onclick="sdiSubmitFormCommand( 'save', 'sampleform' )">

<sapphire:sdiformsuccess>

<sapphire:actionblock>

<sapphire:action name="myaction" actionid="EditSDI">

<sapphire:actionsetproperty propertyid="sdcid" value="Sample"/>

<sapphire:actionsetproperty propertyid="keyid1" value="S-01"/>

<sapphire:actionsetproperty propertyid="samplestatus" value="SCHEDULED"/>

</sapphire:action>

</sapphire:actionblock>

</sapphire:sdiformsuccess>

</sapphire:sdiform>



sdiinput

Generates an HTML <input> tag on the client machine. This saves the work of specifying some attributes of input tags.

Attributes
Attribute	Description	Required?
columnid	Column containing values to show for the input element defined by mode (below).	Yes
mode	Specifies how the input element works, i.e., as a text field, select list, radio button, checkbox, etc. Possible values: input (default) Equivalent to type=text attribute of HTML input tag. text Equivalent to readonly attribute of HTML input tag. inputarea Equivalent to "textarea" HTML tag. dropdownlist Equivalent to HTML select tag that inserts a select form control. data LabVantage Data Entry field (special Data Entry functionality) hidden Equivalent to type=hidden attribute of HTML input tag. lookup Text field with LabVantage Lookup List capability. datelookup Date field with LabVantage Date Lookup capability.	No
data	Lets you specify the type of data that is retrieved from the SDI. The default value is "primary", meaning data are retrieved from the primary result set. Alternatively, you can specify a detail result set. See Result Set Types at the end of this section for a list of values you can enter to get data from detail result sets.	No
row	Lets you specify a row other than the current row.	No
find	Lets you find a row, e.g., find="s_sampleid=S1".	No
value	Initial value of the input element. The default value is taken from the columnid.	No
nullvalue	Value to display if the column value is null. This is useful to maintain page formatting (specify   if the query returns a null value).	No
display	Substitutes text in place of retrieved column values. For example, you could display "Received" if the retrieved value is "R", or "Scheduled" if the retrieved value is "S" as follows: display="R=Received;S=Scheduled"	No
sdcid	If you have specified a value of "lookup" or "dropdownlist" for the "mode" attribute, this is the identifier of the SDC relevant to the SDIs you want to see in the input element.	No
reftypeid	If you have specified a value of "lookup" or "dropdownlist" for the "mode" attribute, this is the identifier of the Reference Type containing values you want to see in the input element.	No
align	Aligns text to the input element. Possible values for an HTML input element are: top (default), middle, bottom, left, right. For example, top indicates that surrounding text is aligned to the top of the input element.	No
style	Specifies Cascading style Sheet Level 2 properties (equivalent functionality of CSS style="property:value").	No
size	Size of the input element (in characters).	No
maxlength	Maximum number of characters that can be entered into a text element.	No
readonly	If using text fields, a value of "true" prevents editing of the input element. A value of "false" allows editing.	No
wrap	If you have specified "inputarea" for the "mode", a value of "true" wraps text.	No
tabindex	Order of the element in the tabbing sequence.	No
rows	If you have specified "inputarea" for the "mode", this is the number of rows in the area.	No
cols	If you have specified "inputarea" for the "mode", this is the number of columns in the area.	No
img	If you have specified a value of "lookup" for the "mode" attribute, this is the hypergraphic image to insert next to the input element.	No
imgtext	ALT tag for the image specified by img (above).	No
extraattributes	Lets you add a LabVantage tag attribute, a standard HTML attribute, or an attribute of your own. For example, extraattributes="accesskey=A;myattr=x" adds two additional attributes.	No
onchange	Specifies an event to occur when the value of the input element is changed. By default, LabVantage always executes the JavaScript function sdiSetRowUpdate() for an onChange event. You can modify this default attribute as follows: To add you own function after the default function, specify onchange="+myFunction()". To add you own function before the default function, specify onchange="myFunction()+". To overwrite the default function with your own function, specify onchange="myFunction()".	No
onkeydown	Specifies an event to occur when a key is pressed down over an element.	No
onfocus	Specifies an event to occur when the cursor focus is on the input element.	No

Example

The following example creates a text input element where the user can enter a description, and two drop list elements where the user can choose among linked items. Note that the "s_projectid" column of the Sample SDC has an SDC Link (foreign key) to the Project SDC, and the "samplestatus" column has a RefType link to the "Sample Status" Reference Type.

<sapphire:sdiform id="saver">

<sapphire:sdi sdcid="Sample" keyid1="S-01" request="primary" nullvalue="&#160;">

<table border="1">

<sapphire:sdirow data="primary">

<tr>

<td><%=sdiinfo.getRowId( "primary" )%></td>

<td><sapphire:sdivalue columnid="s_sampleid"/></td>

<td><sapphire:sdiinput mode="input" columnid="sampledesc" maxlength="20"/></td>

<td><sapphire:sdiinput mode="dropdownlist" columnid="projectid" sdcid="Project"/></td>

<td><sapphire:sdiinput mode="dropdownlist" columnid="samplestatus" reftypeid="Sample Status"/></td>

</tr>

</sapphire:sdirow>

</table>

</sapphire:sdi>

<p>&#160;</p>

<input type="button" value="Save" onclick="sdiSubmitFormCommand( 'save', 'saver' )">

</sapphire:sdiform>

Accessing Data After Submitting the Form

After you submit the form to the Application Server, data input to the form is normally not available to other pages. To make these data available after submission, use an HTML input tag rather than the sdiinput tag, and add the prefix forward_ to the name attribute. For example:

<sapphire:sdiform id="sampleform">

<sapphire:sdi sdcid="Sample" keyid1="S-01" nullvalue="&#160;">

<table border="1">

<sapphire:sdirow data="primary">

<tr>

<td><%=sdiinfo.getRowId( "primary" )%></td>

<td><sapphire:sdivalue columnid="s_sampleid"/></td>

<td><input type="text" name="forward_sampledesc" value=""></td>

</tr>

</sapphire:sdirow>

</table>

</sapphire:sdi>

</sapphire:sdiform>

After submitting the form, you can access the value that was entered through the pagedata JSTL object:

${pagedata.forward_sampledesc}



sdiif

Executes an operation based on whether or not the returned result set meets conditions imposed on an SDI.

Attributes
Attribute	Description	Required?
data	Result set returned if the SDI meets the specified condition (below). The default value is "primary", meaning data are retrieved from the primary result set. Alternatively, you can specify a detail result set. See Result Set Types at the end of this section for a list of values you can enter to get data from detail result sets.	No
condition	Condition(s) that the SDI must meet in order to retrieve the result set specified by data (above). Possible values:1 hasrows The SDI has rows that can be retrieved. norows The SDI does not have any rows that can be retrieved. retrievedrow The row has been retrieved from the database, but its data has not been updated. newrow The row is a newly-created row that contains no data (blank). deletedrow The row is marked for deletion. notdeletedrow The row is not marked for deletion. modifiedrow The row has been retrieved from the database, and its data has been updated. lockedrow All data in the row are locked. This is equivalent to locksuccess (below). locksuccess An operation you performed has successfully locked the target row. This is equivalent to lockedrow (above). unlockedrow All data in the row are not locked. This is equivalent to lockfailure (below). lockfailure An operation you performed has not been able to lock the target row. This is equivalent to unlockedrow (above). haslockedrows The SDI has rows that are locked.	No

1

As an alternative, you could use a Java boolean expression. For example, rather than specify "hasrow" to test if the SDI has rows, you could test if the number of records for the SDI is greater than zero. For example: condition="<%=pageinfo.getProperty(\"keyid\").length()>0%>" <%=sdiinfo.getRowCount(\"primary\")>0%>



sdierror

If any operation in the SDI block does not successfully execute, this tag runs the statements between its start and end tags.

See the note concerning use of this tag with the "nextpage" attribute of the sdiform tag.

Attributes

None

Example

The following example loads error.jsp if any statement in the block fails to execute.

<sapphire:sdi sdcid="Sample" keyid1="S-01" nullvalue="&#160;">

<table border="1">

<sapphire:sdirow>

<tr>

<td><%=sdiinfo.getRowId( "primary" )%></td>

<td><sapphire:sdivalue columnid="s_sampleid"/></td>

<td><sapphire:sdivalue columnid="sampledesc"/></td>

</tr>

</sapphire:sdirow>

</table>

<sapphire:sdierror>

<sapphire:forward action="command=file&file=error.jsp">

</sapphire:forward>

</sapphire:sdierror>

</sapphire:sdi>



sdigroup

Groups data by a result set.

Attributes
Attribute	Description	Required?
data	Specifies the result set by which to group data. The default value is "primary", meaning data are retrieved from the primary result set. Alternatively, you can specify a detail result set. See Result Set Types at the end of this section for a list of values you can enter to get data from detail result sets.	No
sort	Identifier of the column by which you want the data sorted. This attribute sorts in ascending or descending alphabetical order. To specify the order, append an "a" or "d" to the value. For example, sort="project a" is ascending, sort="status d" is descending. You can do multiple sorts, e.g., sort="project a, status d".	No
group	Identifier of the column that you want to define as the group. For example, if group="s_sampleid", the group is composed of all values from the s_sampleid column.	No
filter	Restricts retrieved data to the value you specify. For example, filter="projectid=MyProject" displays only Projects named MyProject.	No

Example

The following example groups Unit SDIs by Category.

<sapphire:sdi sdcid="Units" queryfrom="(default)" nullvalue="&#160;" request="primary,category">

<sapphire:sdigroup data="category" sort="categoryid,keyid1" group="categoryid">

Category: <sapphire:sdivalue data="category" columnid="categoryid"/>

<table border="1">

<sapphire:sdirow data="category">

<tr>

<td width="200">

<sapphire:sdivalue data="category" columnid="keyid1"/>

</td>

<%String find = String.valueOf( sdiinfo.findRow( "category", "unitsid=" + sdiinfo.getValue( "category", "keyid1" ) ) ); %>

<td width="200">

<sapphire:sdivalue data="primary" columnid="unitsdesc" row="<%=find%>"/>

</td>

<td width="200">

<sapphire:sdivalue data="primary" columnid="createdt" row="<%=find%>"/>

</td>

</tr>

</sapphire:sdirow>

</table>

</sapphire:sdigroup>

</sapphire:sdi>



sdicol

Defines columns for an SDI query. This is useful to dynamically build HTML tables.

Attributes

None



sdiname

Lets you specify a value for the "name" attribute of an HTML form control tag. This lets you identify the column requested by the form control without referencing the internal naming scheme LabVantage uses to identify retrieved columns (see the example below).

You need not use this tag if you generate your HTML form controls using the sdiinput tag, which is the method we recommend.

Attributes
Attribute	Description	Required?
data	Lets you specify the type of data that is retrieved from the SDI. The default value is "primary", meaning data are retrieved from the primary result set. Alternatively, you can specify a detail result set. See Result Set Types at the end of this section for a list of values you can enter to get data from detail result sets.	No
columnid	Text that is used to identify the data retrieved from the result set.	No
row	Lets you specify a row other than the current row, which is the default.	No
find	Lets you find a row, e.g., find="s_sampleid=S1".	No



Notes Concerning Tags that Render Elements

The following tags render Elements defined by the Web Page Designer:

sdilist	sdimaintworkflow	sdimaintattachment	sdimaintspec
sdimaint	sdimaintdataset	sdisearch	element

Prior to rendering Elements using these tags, you must add the Elements to the page using the Web Page Designer. Note the following important points concerning these tags:

• Each of these tags must be nested within an sdi tag.
• The sdi tag must have an elementlist attribute. The comma-separated identifiers you specify for the elementlist attribute must match the values of the elementid attribute for each tag that renders an Element. The section Example of Maint Tags shows this.

• The request attribute of the sdi tag must specify all of the Result Set Types you want to retrieve.

• With two exceptions, each of these tags must be nested within an sdirow tag. The exceptions are the sdilist tag (which does not require iteration of the SDI data), and cases where the element rendered by the element tag does not require iteration of the SDI data (you must judge this based on your element).
• Do not nest any of these tags within an sdivalue tag. The sdivalue tag is not needed because the Element itself retrieves the value.
• Each tag only renders the Element (identified by its elementid attribute) on the page - it does not retrieve data displayed in the list. The sdi tag actually retrieves the data. If you change property values in the Element (using the Web Page Designer), it changes only how the item is rendered on the page. The attributes of the sdi tag determine which data are retrieved.

As a basic example, consider a registered JSP ("ListPage") containing only a single sdilist tag (which generates a list of SDIs):

<sapphire:sdi elementlist="customlistelement01" sdcid="Sample" queryfrom="s_sample">

<sapphire:sdilist elementid="customlistelement01"/>

</sapphire:sdi>

The sdilist tag renders the Element identified by "customlistelement01", which has been added to "MyPage". The sdi tag actually retrieves the data. If you change property values in the Element, it changes only how the Element is rendered on the page. The attributes of the sdi tag determine which data are retrieved. The sdilist tag will look for the Element (JSTL object) to render, identifed by "customlistelement01". Working together, both tags provide a list of Samples.

The elementid attribute in each of these tags is the name of the node in the Element Property Tree. It actually represents the reconciled Property List for the node, made available through the Element's JSTL object.



sdilist

Renders a List Element defined by the Web Page Designer. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer.	Yes

Example

You do not need an sdirow tag when using sdilist, as iteration is not required to retrieve the list:

<sapphire:sdi elementlist="customlistelement01" sdcid="Sample" queryfrom="s_sample">

<sapphire:sdilist elementid="customlistelement01"/>

</sapphire:sdi>



sdimaint

Renders an SDI Maintenance Form or Grid. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer. Also see the Example of Maint Tags.	Yes
style	Two possible values: Value Description form style specified in the LabVantage CSS for rendering an SDI Maintenance Form (for use with a single SDI). grid style specified in the LabVantage CSS for rendering an SDI Maintenance Grid (for use with multiple SDIs).	No
viewonly	A value of "true" renders the form or grid as read-only.	No

Example

An example of sdimaint and other Maint tags is provided in the section Example of Maint Tags.



sdimaintworkflow

Renders a list of Workflows assigned to an SDI. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer. Also see the Example of Maint Tags.	Yes

Example

An example of sdimaint and other Maint tags is provided in the section Example of Maint Tags.

sdimaintdataset

Renders a list of Data Sets assigned to an SDI. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer. Also see the Example of Maint Tags.	Yes

Example

An example of sdimaint and other Maint tags is provided in the section Example of Maint Tags.



sdimaintattachment

Renders a list of Attachments assigned to an SDI. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer. Also see the Example of Maint Tags.	Yes

Example

An example of sdimaint and other Maint tags is provided in the section Example of Maint Tags.



sdimaintspec

Renders a list of Specifications assigned to an SDI. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer.. Also see the Example of Maint Tags.	Yes

Example

An example of sdimaint and other Maint tags is provided in the section Example of Maint Tags.



sdimaintaddress

Renders a list of Specifications assigned to an SDI. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer.. Also see the Example of Maint Tags.	Yes

Example

An example of sdimaint and other Maint tags is provided in the section Example of Maint Tags.



Example of Maint Tags

This example generates a Maintenance Form and a separate form for all items associated with it (Data Sets, Specifications, Workflows, Addresses, and Attachments).

The page containing the example code contains all of the Elements specified by the individual tags (these were added using the Web Page Designer). In the code:

1. The elementlist attribute of the sdi tag lists all of the Element identifiers for the elements that will be rendered.
2. The request attribute of the sdi tag retrieves the required Result Set Types for the single Sample (identifier hardcoded for simplicity).
3. The tab tag renders a tab containing the text "Samples" (see tab tag). All items associated with the Sample will be under this tab.
4. An sdirow tag loops through the result sets.
5. The sdimaint tag renders the Sample Maintenance Form.
6. This other maint tags render the remaining Elements specified by each tag's elementid attribute.

The result is shown below the code example.

<sapphire:sdi elementlist="SampleMaintElement, SampleDataSetElement, SampleSpecElement, SampleWorkflowElement, SampleAddressElement, SampleAttachmentElement" sdcid="${SampleMaintElement.sdcid}" keyid1="S-010601-00001" request="primary, dataset, spec, workflow, address, attachment">

<sapphire:tab id="maintformtab" width="100" text="Samples">

<sapphire:sdirow>

<sapphire:sdimaint elementid="SampleMaintElement" style="form"/><br>

<sapphire:sdimaintdataset elementid="SampleDataSetElement"/><br>

<sapphire:sdimaintspec elementid="SampleSpecElement"/><br>

<sapphire:sdimaintworkflow elementid="SampleWorkflowElement"/><br>

<sapphire:sdimaintaddress elementid="SampleAddressElement"/><br>

<sapphire:sdimaintattachment elementid="SampleAttachmentElement"/>

</sapphire:sdirow>

</sapphire:tab>

</sapphire:sdi>



sdisearch

Renders an interface from which an SDI search can be conducted. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer.	Yes

Example

This tag renders the Search Element you have added to the page using the Web Page Designer. In the example below, "SearchElement" is in this page. To use the results of the search, you must write your own JavaScript function to dump the results into another page. We do not supply such a function, but you can get an idea of how to do this by examining the pages in one of the Web Applications. Look at the pages in WEB-CORE/pagetypes/list for examples.

<sapphire:sdi elementlist="SearchElement" sdcid="Sample" queryfrom="s_sample">

<sapphire:sdilist elementid="SearchElement"/>

</sapphire:sdi>



element

Use this tag to render an Element. The Element can be one you have created, or one of the Elements supplied with LabVantage. Before using this tag, see Notes Concerning Tags that Render Elements for general rules concerning usage.

Attributes
Attribute	Description	Required?
elementid	Name of the JSTL object that provides property-value pairs for the Element (see the example below). For more information, see JSTL Objects in the Advanced Operations section of the Web Page Designer.	Yes
type	Element Type. This is the identifier of the Property Tree itself.	Yes

Example

For a description of how this tag operates, see Creating Elements in the Advanced Operations section of the Web Page Designer. The example there shows how to use the tag attributes to insert your own custom Element on a page.

This example below renders a Dataentrylist Element with a "Save" button.

<sapphire:button text="Save" action="sdiSubmitFormCommand( 'save', 'DEList' )"/>

<sapphire:sdiform id="DEList">

<sapphire:sdi sdcid="Sample" keyid1="S-010605-00001;S-010605-00003;S-010605-00005" request="primary[batchid.batchdesc],dataset,dataitem[keyid1.sampledesc]">

<sapphire:element elementid="DEListElement" type="dataentrylist"/>

</sapphire:sdi>

</sapphire:sdiform>



translate

Translates text between tags.

Attributes
Attribute	Description	Required?
languageid	Identifier of the language into which you want to translate text. Create the language using the Translations Maintenance Page. If you do not specify a value for this attribute, LabVantage should use the language specified by the User Profile Properties.	No

Example

You can translate all text between start and end tags, or only portions thereof. To translate a word or phrase, you must first do both of the following using the Translations Maintenance Page:

a.	Add the language into which you want to translate text.
b.	Provide a translation for the word or phrase.

The following example translates all text within the tag:

<sapphire:translate languageid="Klingonese">No data found</sapphire:translate>

On the rendered JSP, this displays the translation "Shya Kok Nook".

To translate only portions of the text, use double curly braces to enclose each portion to be translated:

<sapphire:translate languageid="Klingonese">In Klingonese, "{{No data found}}" means "No data found".</sapphire:translate>

On the rendered JSP, this displays "In Klingonese, "Shya Kok Nook" means "No data found"."

You can also call several methods on instances of the Translation Processor class (see the Javadoc for the sapphire.* Packages). These also provide full and partial translation capabilities.
