Overview |
|
|
Purpose |
|
Actions |
Content |
|||||||||||
|
Adds and edits Server-Side Actions. Adding a User Action registers it with LabVantage.
Concepts |
| • | Concepts of Actions |
| • | Concepts of Versioning |
Description |
|
|
Action List Page |
|
| Button | Description | |
| Add | Opens the Action Maintenance Page to add a User Action. | |
| Edit | Opens the Action Maintenance Page to allowing editing. | |
| List Control | ||
| Copy | Creates a copy of the Action SDI. | |
| View | Opens the Action Maintenance Page in readonly mode. | |
| Delete | Deletes the Action SDI from the database. | |
| Manage Roles | When executing Actions using Axis/JAX
Web Services or REST Web Services, this
lets you grant Role-Level

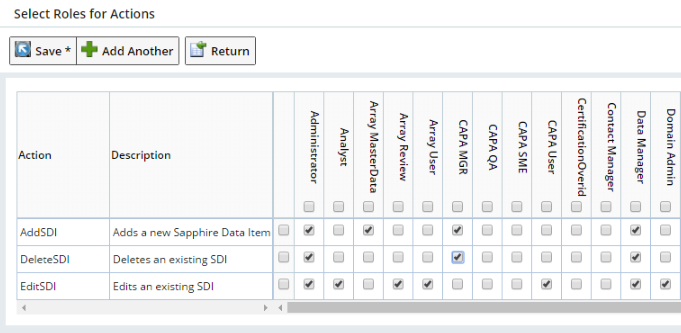

Access to Actions. As shown below, the ManyToManyMaint
Page Type is the basis for associating Actions with Roles. These Action-Role
associations are enforced using the "Action Processing → Defined
By Roles " property in the SecurityPolicy.
When both the Action-Role associations and SecurityPolicy are set, a User
must be a member of the specified Role in order to call an Action using
the Web Services.
|
|
| Configuration Report | Launches the Configuration Report utility. | |
| Other Tasks | ||
| Export | Launches the Configuration Transfer Tools for Exporting SDIs. |
Functionality of the Action Maintenance Page:
Action Maintenance Page |
|
| Field | Description | ||||||
| Action | Identifier of the Action. | ||||||
| Version | Version number of the Action. | ||||||
| Version Status | Current Status of the Version. | ||||||
| Type | Indicates whether this is a System or User Action. | ||||||
| Description | Description of Action functionality. | ||||||
| Java Object Name | If "Action Language" (below) is Java, this is the package
and class defining the Action, e.g.,
sapphire.custom.myproject.MyActionClass |
||||||
| Action Language | Specifies how you want to generate the Action code:
|

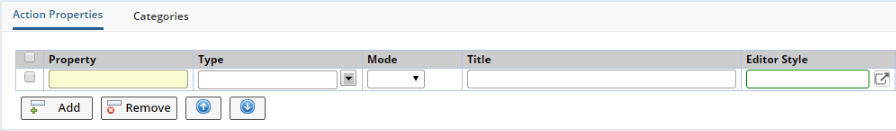

Action Properties |
|
| Column | Description |
| Property | Identifier of the property. |
| Type | LabVantage Data Type that defines the data and determines how they are displayed. |
| Mode | "Input" indicates this is an input property to the Action. "Output" indicates this is an output property from the Action. |
| title | Optional name to be displayed for the property. |
| Editor style | Editor style used in the Action Block Editor. |
| Editor Return Mapping | For internal use. |
| Edit SDC Id | SDC used for the lookup for the relevant LabVantage Data Type in the Action Block Editor if no Editor style is specified. |
| Edit Ref Type | Reference Type used for the lookup for the relevant LabVantage Data Type in the Action Block Editor if no Editor style is specified. |
| Help | Text that identifies the Property. |
| Default Value | Property value to use by default. |
