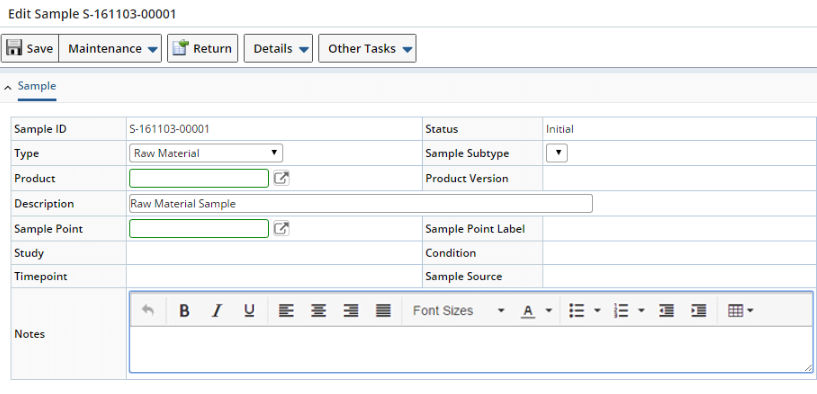

Configured in the maint Element, the
"formattedtext" Column
Mode uses the "PRINTABLE" mode of the TinyMCE editor
control. This renders a basic set of toolbar buttons that can be printed by
the LabVantage Reporting framework.
| TinyMCE Plugins |
code lists paste textcolor colorpicker table advlist |
| TinyMCE Toolbar Buttons |
undo | bold italic underline | alignleft aligncenter
alignright alignjustify | fontsizeselect forecolor | bullist numlist outdent
indent | table |

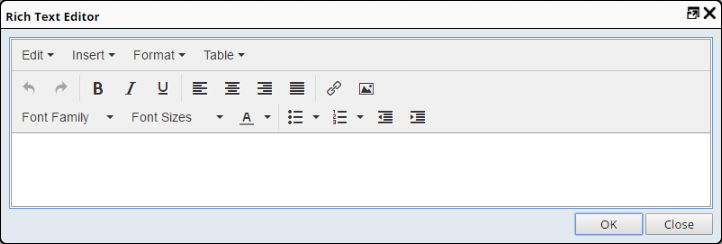

In Attachment pages, the "Rich
Text" Attachment Type uses the "FULL" mode of the
TinyMCE editor control. This editor offers more support than the implementation
provided for SDI Maintenance pages, as it does not exclude unprintable formatting.
|
| TinyMCE Plugins |
advlist autolink lists link image charmap anchor searchreplace
visualblocks textcolor colorpicker code fullscreen insertdatetime media
table paste code imagetools lv_insert |
| TinyMCE Toolbar Buttons |
Line 1: undo redo | bold italic underline | alignleft
aligncenter alignright alignjustify | link image
Line 2: fontselect fontsizeselect forecolor | bullist numlist outdent
indent |
| TinyMCE Menu Bar |
Edit: undo redo | cut copy paste pastetext | selectall
Insert: link media | lv_insertphrase | NOTE: | Note that "Insert Phrase" inserts predefined
Phrases into the editor. These are
configured through the "Phrases for Rich Text" collection
in the Attachment Policy. |
Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column |
The eForms Form Builder used
for Forms and Formlets uses TinyMCE configurations that offer advanced controls
required for creating and maintaining Forms.
Several modes of the Editor are used depending on area of functionality
as described below.
Forms
Launched from Form Maintenance
|
|
Forms launched from Form Maintenance uses the "FORM" mode
of the TinyMCE editor control.
| TinyMCE Plugins |
advlist autolink lists link image charmap print preview
hr anchor visualblocks visualchars code insertdatetime media nonbreaking
save table directionality emoticons template paste textcolor colorpicker
textpattern imagetools lv_pageslv_forms lv_insert
autosave |
| TinyMCE Toolbar Buttons |
Line 1: lv_addpage
| restoredraft | undo redo | bold italic underline | alignleft aligncenter
alignright alignjustify | link image lv_draw
hr charmap lv_button Line 2: fontselect fontsizeselect forecolor backcolor | bullist numlist
outdent indent | lv_fields lv_controlledlv_label | lv_formlet |
| TinyMCE Menu Bar |
Pages: lv_addpagelv_editpage lv_removepage Edit: undo redo | cut copy paste pastetext | selectall Insert: link anchor | image hr charmap lv_insertdivlv_insertfieldset lv_button
| lv_inserthtml lv_insertdocument View: visualaid Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column |
Forms Launched in the Web Page Designer
|
|
Forms launched in the Web Page Designer (such as the eFormStep
Workflow Task Step Definition) use the "SIMPLEFORM" mode
of the TinyMCE editor control.
| TinyMCE Plugins |
advlist autolink lists link image charmap print preview
hr anchor visualblocks visualchars code insertdatetime media nonbreaking
save table directionality emoticons template paste textcolor colorpicker
textpattern imagetools lv_pages lv_formslv_insert autosave |
| TinyMCE Toolbar Buttons |
Line 1: restoredraft | undo redo | bold italic underline
| alignleft aligncenter alignright alignjustify | link image lv_draw
hr charmap lv_button Line 2: fontselect fontsizeselect forecolor backcolor | bullist numlist
outdent indent | lv_fields lv_controlledlv_label | NOTE: | lv_addpage and
lv_formlet buttons are missing
from FORM to SIMPLEFORM. |
|
| TinyMCE Menu Bar |
Edit: undo redo | cut copy paste pastetext | selectall
Insert: link anchor | image hr charmap lv_insertdivlv_insertfieldset lv_button
| lv_inserthtml lv_insertdocument View: visualaid Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column | NOTE: | The "Page" menu is missing from FORM
to SIMPLEFORM. |
|
Forms Launched from the ELN Form Control
|
|
Forms launched from the Form Control
use the "SIMPLEFORM" mode of the TinyMCE editor control.
| TinyMCE Plugins |
advlist autolink lists link image charmap print preview
hr anchor visualblocks visualchars code insertdatetime media nonbreaking
save table directionality emoticons template paste textcolor colorpicker
textpattern imagetools lv_pages lv_formslv_insert autosave |
| TinyMCE Toolbar Buttons |
Line 1: restoredraft | undo redo | bold italic underline
| alignleft aligncenter alignright alignjustify | link image hr charmap
Line 2: fontselect fontsizeselect forecolor backcolor | bullist numlist
outdent indent | lv_elnfields lv_label | NOTE: | lv_addpage,
lv_button, lv_draw,
lv_controlled and lv_formlet
buttons are missing from FORM to ELNFORM. Also lv_fields
is swapped for lv_elnfields. |
|
| TinyMCE Menu Bar |
Edit: undo redo | cut copy paste pastetext | selectall
Insert: link anchor | image hr charmap lv_insertdivlv_insertfieldset lv_button
| lv_inserthtml View: visualaid Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column | NOTE: | The "Page" menu is missing and lv_insertdocument
is missing from the "Insert" menu in FORM to ELNFORM. |
|
Forms
Launched from Formlet Maintenance
|
|
Formlets use the "FORMLET"
mode of the TinyMCE editor control.
| TinyMCE Plugins |
advlist autolink lists link image charmap print preview
hr anchor visualblocks visualchars code insertdatetime media nonbreaking
save table directionality emoticons template paste textcolor colorpicker
textpattern imagetools lv_pages lv_formslv_insert autosave |
| TinyMCE Toolbar Buttons |
Line 1: restoredraft | undo redo | bold italic underline
| alignleft aligncenter alignright alignjustify | link image lv_draw
hr charmap lv_button Line 2: fontselect fontsizeselect forecolor backcolor | bullist numlist
outdent indent | lv_fields lv_controlledlv_label | NOTE: | lv_addpage and
lv_formlet buttons are missing
from FORM to FORMLET. |
|
| TinyMCE Menu Bar |
Edit: undo redo | cut copy paste pastetext | selectall
Insert: link anchor | image hr charmap lv_insertdivlv_insertfieldset lv_button
| lv_inserthtml lv_insertdocument View: visualaid Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column | NOTE: | The "Page" menu is missing from FORM
to FORMLET. |
|

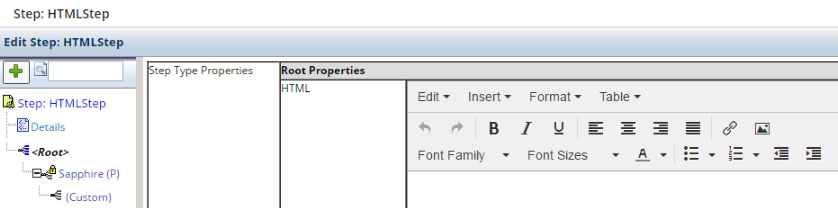

Property Editors in Property Trees
|
|
Certain Property Trees (such as editing the HTML content for the HTMLStep
Workflow Task Step Definition) use the editor in either of two modes as
described below.
"PRINTABLE" mode:
| TinyMCE Plugins |
code lists paste textcolor colorpicker table advlist |
| TinyMCE Toolbar Buttons |
undo | bold italic underline | alignleft aligncenter alignright
alignjustify | fontsizeselect forecolor | bullist numlist outdent indent
| table |
"FULL" mode:
| TinyMCE Plugins |
advlist autolink lists link image charmap anchor searchreplace
visualblocks textcolor colorpicker code fullscreen insertdatetime media
table paste code imagetools lv_insert |
| TinyMCE Toolbar Buttons |
Line 1: undo redo | bold italic underline | alignleft
aligncenter alignright alignjustify | link image
Line 2: fontselect fontsizeselect forecolor | bullist numlist outdent
indent |
| TinyMCE Menu Bar |
Edit: undo redo | cut copy paste pastetext | selectall
Insert: link media | template hr Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column |
Inserting a Rich Text Control
into an ELN/LES Worksheet renders
the editor in "EXPANDABLE" mode. This mode is an advanced custom mode
using an internal LabVantage plugin to expand the toolbar.
| TinyMCE Plugins |
advlist autolink lists link charmap print preview hr anchor
pagebreak visualblocks visualchars code insertdatetime media nonbreaking
save table directionality emoticons template paste textcolor colorpicker
textpattern image imagetools lv_pageslv_forms lv_insertlv_more autosave leaui_formula |
| TinyMCE Toolbar Buttons |
Line 1: restoredraft | undo redo | bold italic underline | alignleft
aligncenter alignright alignjustify | fontselect fontsizeselect forecolor
backcolor | image leaui_formula | lv_more
Line 2: bullist numlist outdent indent | link lv_draw
hr charmap insertdatetime lv_insertdocument
media | table
|
| TinyMCE Menu Bar |
Edit: undo redo | cut copy paste pastetext | selectall
Insert: link anchor | image media hr charmap lv_insertdivlv_insertfieldset | lv_inserthtmllv_insertdocument View: visualaid Format: bold italic underline strikethrough superscript subscript |
formats | removeformat Table: inserttable tableprops deletetable | cell row column |

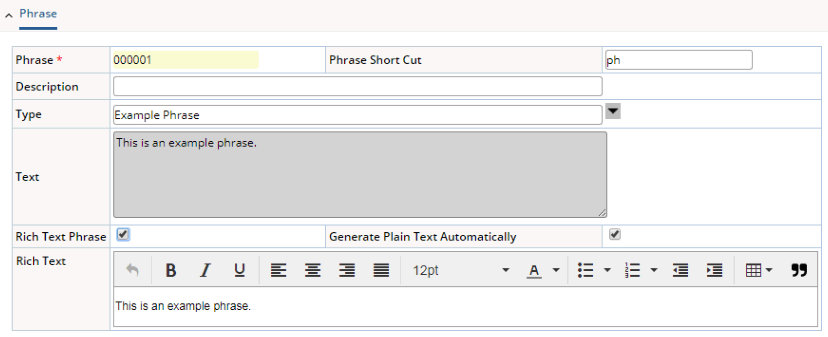

Phrases use a modification of the SDI Maintenance
page editor.
| TinyMCE Plugins |
code lists paste textcolor colorpicker table advlist |
| TinyMCE Toolbar Buttons |
undo | bold italic underline | alignleft aligncenter
alignright alignjustify | fontsizeselect forecolor | bullist numlist outdent
indent | table lv_insertphrase |
The Formatted Text Editor supports Phrase
suggestion in all places where the editor is used. Suggestion is triggered
by the CTRL+Space key combination.
The last word is used as initial suggestion input. If the last word matches
one and only one Phrase Short Cut, the word is replaced with the Phrase plain
(or formatted) text without offering suggestions. If the Phrase Short Cut
is not a direct match, the suggestion editor opens with the last word as input
to wildcard search to the keyword and Phrase text. You can continue to enter
text to narrow down or broaden the suggestion list.
|
|
|
|
LabVantage TinyMCE Plugins
|
|
|
|
|
|
LabVantage plugins to TinyMCE are summarized below. All LabVantage plugins
begin with the "lv_" prefix. They are highlighted in bold red text in the
preceding sections to make them conspicuous.
| Plugin
|
Buttons
|
Menus
|
Description
|
| lv_pages |
lv_addpage |
lv_addpage
lv_editpage lv_removepage |
Manages the addition, editing and removal of pages. These
are used specifically in Forms to allow paging of content. |
| lv_forms |
lv_formlet
lv_button lv_fields lv_elnfields lv_controlled lv_savefield lv_editfield lv_editsimplefield lv_formelement lv_addtogroup lv_saveformlet lv_refreshformlet lv_locksection lv_unlocksection lv_refreshfield lv_rowsection lv_tablesection lv_divsection lv_label |
lv_button |
Inserts and manages Labvantage Forms. Allows insertion
of Fields (lv_fields or lv_elnfields) and additional content used by the
Form Builder. Some buttons are used on the main toolbar, whereas others
(such as lv_unlocksection) are used on context toolbars when an item is
selected. lv_fields and lv_elnfields are dropdown buttons offering additional
items. |
| lv_insert |
lv_insertdocument
lv_draw lv_originalimage |
lv_insertdocument |
Extends the ability to insert content into TinyMCE. The
insertdocument button and menu item allow import from Word using the Aspose
third-party library. The draw and orginalimage toolbar buttons are added
to the image context toolbar (or lv_draw to the main toolbar). The draw
button allows markup of images in the editor, whereas the orginalimage
button allows markup to be cleared and reverts the image back to its orginal
state. |
| lv_more |
lv_more |
None |
Extends the editor to give a single ellipsis button that
allows toolbars to be collapsed on initial load and expanded onClick of
the button to show additional toolbars and menus. |
|
|
|
|
Third-Party TinyMCE Plugins
|
|
|
|
|
|
Third-party plugins to TinyMCE are summarized below.
