Basic OOB LES Worksheet Generation Examples

LabVantage LES Implementation

Top

The LabVantage implementation of "Laboratory Execution System" (LES) generates a Worksheet based on a Global LES Worksheet Template and any of these SDIs:

•	Test Method		•	Instrument Model or Instrument Type		•	Consumable Type
•	QC Method		•	Sample Type or Sample SubType

For the purposes of this discussion, the "Master Object" contains information used by the LES Worksheet Template to generate the LES Worksheet. The Worksheet is generated by executing an operation on one of the "Instance Objects".

Objects (SDC/SDI)

High-Level Description of LES Worksheet Generation

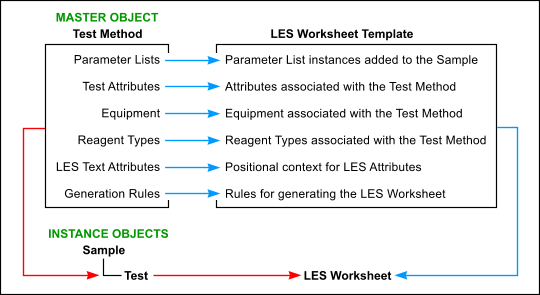

Master Object	=	Test Method
Instance Object	=	Test

Test Method

The Test Method is input to a Global Worksheet Template for LES Worksheets. The Test Method defines these items that are used by the Template to generate the LES Worksheet:

•	Parameter Lists (and other Test Methods if it is a Workitem Group).
•	LES Text that defines Instructions, Information, and positional information for insertion into the LES Worksheet.
•	Rules for generating the LES Worksheet (such as Create LES Worksheet Rule and Author Rule).

Optionally, the Test Method can also define:

•	Test Attributes, which are defined at the level of the Test Method itself.
•	Equipment (Instruments) and Consumable Types associated with the Test Method.

LES Worksheet Template

The LES Worksheet Template uses information in the Test Method to generate the LES Worksheet (such as Attributes Controls that act as placeholders for LES Text, and Sections/Controls required to fulfill the purpose of the Worksheet).

Test

A Test based on the Test Method is added to the Sample.

LES Worksheet

The Worksheet is generated on the Test in accordance with the chosen Create LES Worksheet Rule and Author Rule.

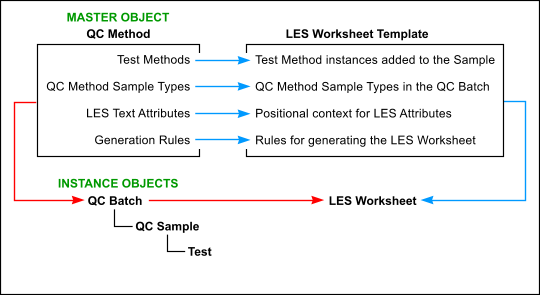

Master Object	=	QC Method
Instance Object	=	QC Batch

QC Method

The QC Method is input to a Global Worksheet Template for LES Worksheets. The QC Method defines these items that are used by the Template to generate the LES Worksheet:

•	Standard Test Method.
•	QC Method Sample Types that define quality control Samples in the QC Batch.
•	LES Text that defines Instructions, Information, and positional information for insertion into the LES Worksheet.
•	Rules for generating the LES Worksheet (such as Create LES Worksheet Rule and Author Rule).

Optionally, the Test Method can also define:

•	Test Attributes, which are defined at the level of the Test Method itself.
•	Equipment (Instruments) and Consumable Types associated with the Test Method.

LES Worksheet Template

The LES Worksheet Template uses information in the QC Method to generate the LES Worksheet (such as Attributes Controls that act as placeholders for LES Text, and Sections/Controls required to fulfill the purpose of the Worksheet).

QC Batch

The QC Method is associated with the QC Batch.

LES Worksheet

The Worksheet is generated on the QC Batch in accordance with the chosen Create LES Worksheet Rule and Author Rule.

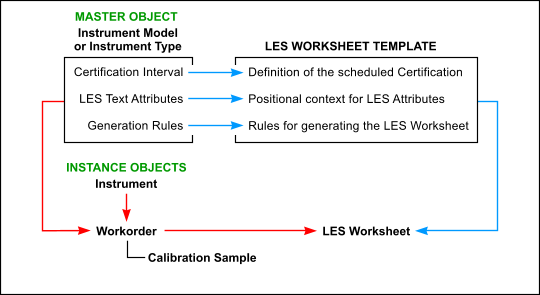

Master Object	=	Instrument Model Instrument Type
Instance Object	=	Workorder

Instrument Model or Instrument Type

The Instrument Model or Instrument Type is input to a Global Worksheet Template for LES Worksheets. When Worksheets are generated, an attempt is made to use the LES configuration in the Instrument Model. If no configuration exists for the Instrument Model, the Instrument Type is used (providing it has an LES configuration).

The Instrument Model or Type defines these items that are used by the Template to generate the LES Worksheet:

•	Certification Interval (Reference Type used by the SDICertification Schedule Task).
•	LES Text that defines Instructions, Information, and positional information for insertion into the LES Worksheet.
•	Rules for generating the LES Worksheet (such as Create LES Worksheet Rule and Author Rule).

LES Worksheet Template

The LES Worksheet Template uses information in the Instrument Model (or Type) to generate the LES Worksheet (such as Attributes Controls that act as placeholders for LES Text, and Sections/Controls required to fulfill the purpose of the Worksheet).

SDICertification Schedule Task

The Instrument's Schedule Plan for Calibration or Maintenance at the specified Calibration Interval executes an SDICertification Schedule Task.

Workorder

The SDICertification Schedule Task generates the Instrument Certification Workorder.

LES Worksheet

The Worksheet is generated on the Instrument Certification Workorder in accordance with the chosen Create LES Worksheet Rule and Author Rule.

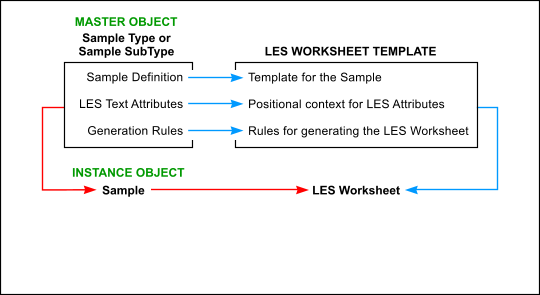

Master Object	=	Sample Type Sample SubType
Instance Object	=	Sample

Sample Type or Sample SubType

The Sample Type or Sample SubType is input to a Global Worksheet Template for LES Worksheets. When Worksheets are generated for multiple Samples, all must be of the same Type or SubType. If all Samples are of the same SubType, an attempt is made to use the LES configuration in the Sample SubType. Otherwise, all Sample Types are checked. If all Samples are of the same Sample Type, the Sample Type is used (providing it has an LES configuration).

The Sample Type or SubType defines these items that are used by the Template to generate the LES Worksheet:

•	Certification Interval (Reference Type used by the SDICertification Schedule Task).
•	LES Text that defines Instructions, Information, and positional information for insertion into the LES Worksheet.
•	Rules for generating the LES Worksheet (such as Create LES Worksheet Rule and Author Rule).

LES Worksheet Template

The LES Worksheet Template uses information in the Sample Type (or SubType) to generate the LES Worksheet (such as Attributes Controls that act as placeholders for LES Text, and Sections/Controls required to fulfill the purpose of the Worksheet).

Sample

The Sample Type (or SubType) is associated with a Sample.

LES Worksheet

The Worksheet is generated on the Sample in accordance with the chosen Create LES Worksheet Rule and Author Rule.

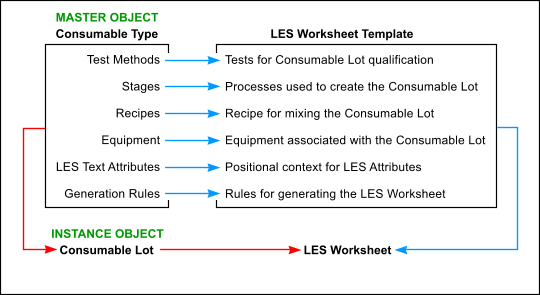

Master Object	=	Consumable Type
Instance Object	=	Consumable Lot

Consumable Type

The Consumable Type is input to a Global Worksheet Template for LES Worksheets. The Consumable Type defines these items that are used by the Template to generate the LES Worksheet:

•	Test Methods used to qualify the Consumable Lot.
•	Stages that define laboratory processes used to create the Consumable Lot.
•	Recipies for mixing the Consumable Lot.
•	Equipment used during processes thast create the Consumable Lot.
•	Quality Sample information.
•	LES Text that defines Instructions, Information, and positional information for insertion into the LES Worksheet.
•	Rules for generating the LES Worksheet (such as Create LES Worksheet Rule and Author Rule).

LES Worksheet Template

The LES Worksheet Template uses information in the Consumable Type to generate the LES Worksheet (such as Attributes Controls that act as placeholders for LES Text, and Sections/Controls required to fulfill the purpose of the Worksheet).

Consumable Lot

The Consumable Type is associated with the Consumable Lot.

LES Worksheet

The Worksheet is generated on the Consumable Lot in accordance with the chosen Create LES Worksheet Rule and Author Rule.

Create LES Worksheet Rule

Top

"Create LES Worksheet Rule" lets you choose how you want to generate the Worksheet:

Create LES Worksheet Rule

Description

On Creation

Automatically generates the LES Worksheet when an event occurs as shown below (also see Author Rule below).

Master Object	Generates LES Worksheet When:
Test Method	Test (based on Test Method) is added to a Sample.
QC Method	QC Batch (based on QC Method) is created.
Instrument Model Instrument Type	Instrument Certification Workorder (for the Instrument Model or Type) is created.

On Demand

Manually generates the Worksheet when the button on the relevant page is clicked as shown below (also see Author Rule below).

Master Object

Page

Button

Test Method

LIMS → Tests → Manage Tests

Create LES Worksheet

Create & Assign LES Worksheet

QC Method

LIMS → AQC → QC Batches → QC Batch List

Create LES Worksheet

Instrument Model
Instrument Type

LIMS → Instrument Certification → Pending Certifications → Workorder List

Create LES Worksheet

Sample Type
Sample SubType

LIMS → Samples → Manage → Sample List

LES → Create LES Worksheet

LES → Create & Assign LES Worksheet

Consumable Type

LIMS → Consumables → New Consumable Lots List

NOTE:

Consumable Types do not have a "Create LES Worksheet Rule".
All are generated on demand.

Mix Consumable Using Worksheet

Create LES Worksheet

Create & Assign LES Worksheet

On Assignment

Automatically generates the Worksheet when an Analyst is assigned (also see Author Rule below).

Master Object	Generates LES Worksheet When:
Test Method	Test (based on Test Method) is assigned to an Analyst (LIMS → Tests → Manage Tests → SDIWorkitem List → Assign Analyst).
QC Method	QC Batch is assigned to an Analyst (LIMS → AQC → QC Batches → QC Batch List → Assign Analyst).
Instrument Model Instrument Type	Instrument Certification Workorder for the Instrument Model or Type is assigned to an Analyst (specified in the SDICertification Schedule Task or in LIMS → Instrument Certification → Workorder List, depending on the Author Rule).

On Receive

Automatically generates the Worksheet when a Sample is Received (also see Author Rule below).

Master Object	Generates LES Worksheet When:
Sample Type Sample SubType	Sample (based on Sample Type or SubType) is Received.

Author Rule

Top

The "Author Rule" lets you define the "Author" of the LES Worksheet. The "Author" is the User who is granted "Author" User Privileges for the Worksheet. In the database, the Author is persisted in Worksheet.AuthorId. This allows operations such as querying to show all Worksheets having no Author. This is how it works:

Master Object	Create LES Worksheet Rule	Operation	Author Rule	Worksheet Author
Test Method	On Demand	LIMS → Tests → Manage Tests → SDIWorkitem List → Create LES Worksheet	Current User	User who created the Worksheet.
			Assigned User	If the selected Tests are not assigned to any Users, the Author is (null). The first User who opens the Worksheet becomes the Author. If the selected Tests are assigned to a single User, that User becomes the Author. If the selected Tests are assigned to multiple Users (and/or some Tests are not assigned to any Users), an error is generated. The same Analyst (User) must be assigned to all selected Tests.
		LIMS → Tests → Manage Tests → SDIWorkitem List → Create & Assign LES Worksheet	Current User	If the selected Tests are not assigned to any Users, a dialog prompts you to choose a User. The chosen User becomes the Author, and all selected Tests are assigned to that User. If the selected Tests are assigned to one or more Users (and/or some Tests are not assigned to any Users), a dialog prompts with the message "Workitems already assigned. Would you like to reassign?". If "Yes", the newly selected User becomes the Author, and all selected Tests are assigned to that User. If "No", no action is taken.
			Assigned User	Same as "Current User" above. In this case, the Author Rule makes no difference.
	On Creation	Add Test to Sample.	Current User	User who created the Worksheet.
	On Creation	Add Test to Sample.	Assigned User	Always (null), since you cannot assign a User to a Test before you add the Test. The first User who opens the Worksheet becomes the Author.
	On Assignment	LIMS → Tests → Manage Tests → SDIWorkitem List → Assign Analyst	Current User	User who created the Worksheet, regardless of the User who is actually assigned to the Test.
	On Assignment		Assigned User	User (Analyst) assigned to the Test.

Master Object	Create LES Worksheet Rule	Operation	Author Rule	Worksheet Author
QC Method	On Demand	LIMS → AQC → QC Batches → Create LES Worksheet	Current User	User who created the Worksheet.
	On Demand	LIMS → AQC → QC Batches → Create LES Worksheet	Assigned User	If the selected QC Batch is assigned to a User, that User becomes the Author of the Worksheet; otherwise, the Author remains (null). The first User who opens the Worksheet becomes the Author.
	On Creation	Create QC Batch (based on QC Method).	Current User	User who created the Worksheet.
	On Creation	Create QC Batch (based on QC Method).	Assigned User	Always (null), since you cannot assign a User to a QC Batch before you create the QC Batch. The first User who opens the Worksheet becomes the Author.
	On Assignment	LIMS → AQC → QC Batches → Assign Analyst	Current User	User who created the Worksheet, regardless of the User who is actually assigned to the QC Batch.
	On Assignment	LIMS → AQC → QC Batches → Assign Analyst	Assigned User	User (Analyst) assigned to the QC Batch.

Master Object	Create LES Worksheet Rule	Operation	Author Rule	Worksheet Author
Instrument Model Instrument Type	On Demand	LIMS → Instrument Certification → Pending Certifications → Create LES Worksheet	Current User	User who created the Worksheet.
	On Demand		Assigned User	If the selected Workorder is assigned to a User, that User becomes the Author of the Worksheet; otherwise, the Author remains (null). The first User who opens the Worksheet becomes the Author.
	On Creation	Create Instrument Certification Workorder (System Admin → Schedule Plan List → Scheduling).	Current User	User who created the Worksheet.
	On Creation		Assigned User	If the selected Workorder is assigned to a User, that User becomes the Author of the Worksheet; otherwise, the Author remains (null). The first User who opens the Worksheet becomes the Author.
	On Assignment	Assign Instrument Certification Workorder to a User by editing the Workorder (LIMS → Instrument Certification → Workorder List → Edit).	Current User	User who created the Workorder, regardless of the User who is actually assigned to the Workorder.
	On Assignment		Assigned User	User assigned to the Workorder (in the Edit Workorder page).

Master Object	Create LES Worksheet Rule	Operation	Author Rule	Worksheet Author
Sample Type	On Demand	LIMS → Samples → Manage → Create LES Worksheet	Current User	User who created the Worksheet.
		LIMS → Samples → Manage → Create LES Worksheet	Assigned User	This choice is not available, since there is nothing to assign.
		LIMS → Samples → Manage → Create & Assign LES Worksheet	Current User	A dialog prompts you to choose a User. The chosen User becomes the Author.
		LIMS → Samples → Manage → Create & Assign LES Worksheet	Assigned User	This choice is not available, since there is nothing to assign.
	On Receive	Sample is Received.	Current User	User who Received the Sample and thereby created the Worksheet.
	On Receive	Sample is Received.	Assigned User	This choice is not available, since there is nothing to assign.

Master Object	Create LES Worksheet Rule	Operation	Author Rule	Worksheet Author
Consumable Type	None (all are created on demand)	Consumables → New Consumable Lot List → Mix Consumable Using Worksheet	Current User	User who created the Worksheet.
			Assigned User	This choice is not available, since there is nothing to assign.
		Consumables → New Consumable Lot List → Create LES Worksheet	Current User	User who created the Worksheet.
			Assigned User	This choice is not available, since there is nothing to assign.
		Consumables → New Consumable Lot List → Create & Assign LES Worksheet	Current User	A dialog prompts you to choose a User. The chosen User becomes the Author.
			Assigned User	This choice is not available, since there is nothing to assign.

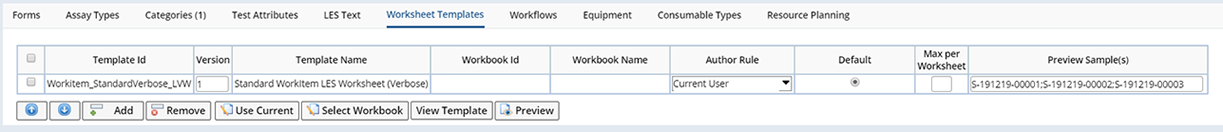

LES Worksheet Template Detail

Top

The sdidetailmaint Element in the SDI Maintenance page for the Definition SDI contains a "worksheettemplates" property list, which renders a "Worksheet Templates" detail tab. This allows selection of the Template used to generate the LES Worksheet. The example below shows the detail in the Test Method Maintenance Page.

Operation

Description

Add

Opens a lookup that lets you choose a Global LES Worksheet Template that is relevant to the Master Object. The "Version" is automatically populated with the Version of this Template. These Global LES Worksheet Templates are provided OOB and configured for the specified OOB Master Object:

OOB Master Object	OOB LES Worksheet Template
"Alkali Metals" Test Method	Standard WorkItem LES Worksheet (Verbose)
"Precious Metals" QC Method	QCBatch with Review LES Worksheet
"pH Meter" Instrument Type	Instrument Certification LES Worksheet
"Finished" Sample Type	Finished Product Sample LES Worksheet

A "Base LES Worksheet" OOB LES Worksheet Template is also provided. This creates a basic LES Worksheet for an SDI. See QC Batch Viewer Control for an example.

NOTE:

The LES Worksheet Templates listed above are "Core" Templates (as shown in Global Template Maintenance for Worksheets). Core Templates cannot be modified, as they may be upgraded in the future.

Remove

Removes the selected Worksheets and dissociates them from the Master Object.

Use Current

Changes the Template Version to the current Version (see Concepts of SDI Versioning and Approval), which is then identified as (Ver: C).

Select Workbook

Opens a lookup that lets you choose the Workbook that will host this Worksheet. This is populated by the WorkbookId. The "Workbook Name" is automatically populated with the Workbook "Description".

View Template

Opens a structural preview of the selected Worksheet Template. This is available only in the Test Method Maintenance page.

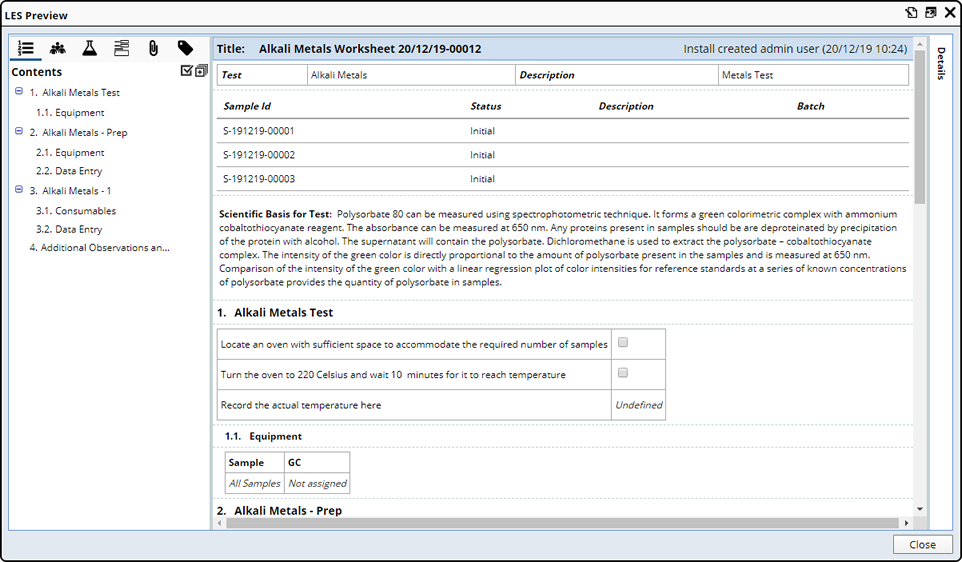

Preview

Creates an LES Worksheet based on the SDIs listed in the "Preview Samples(s)" field.

Field	Description
Template Id Version Template Name	Identifier, Version, and name of the Worksheet Template.
Workbook Id Workbook Name	Identifier and name of the Workbook that hosts the Worksheet.
Author Rule	Specifies the Author Rule for Worksheet generation.
Default	Indicates the Worksheet that is used if none is specified at time of creation.
Max per Worksheet	This is available in the Test Method Maintenance page and Sample Type Maintenance page. When generating Worksheets "On Demand" for selected SDIs in the Manage Tests page (or Sample List page), this specifies the maximum number of Tests (or Samples) to be included in each generated Worksheet. When a Worksheet is generated in the Manage Tests page, Samples are displayed in the Worksheet in the order in which the Tests are passed to the GenerateTestMethodWorkSheet Action. For example, if Tests are passed in the order 1283; 1282; 1284; 1281 for 4 samples S-180205-00003, S-180205-00002, S-180205-00004, S-180205-00001 respectively and "Max per Worksheet" is set to 3 in the Test Method, the first Worksheet will contain the Tests for the 3 Samples S-180205-00003, S-180205-00002, S-180205-00004 and the second Worksheet will contain the Test for the last Sample S-180205-00001. When a Worksheet is generated in the Sample List page, Samples are displayed in the Worksheet in the order in which the Samples are passed to the GenerateSampleWorkSheet Action. For example, if 5 Samples S-180125-00003;S-180125-00001;S-180125-00005;S-180125-00002;S-180125-00004 are passed into the Action and "Max per Worksheet" is set to 2 in the Sample Type, the first Worksheet will contain Samples S-180125-00003 and S-180125-00001, the second Worksheet will contain Samples S-180125-00005 and S-180125-00002, and the third will contain Sample S-180125-00004.
Preview Samples	Define a semi-colon separated list of Samples with which this Test Method is associated. This list is used to provide a preview of an LES Worksheet based on those Workitems (Preview button).

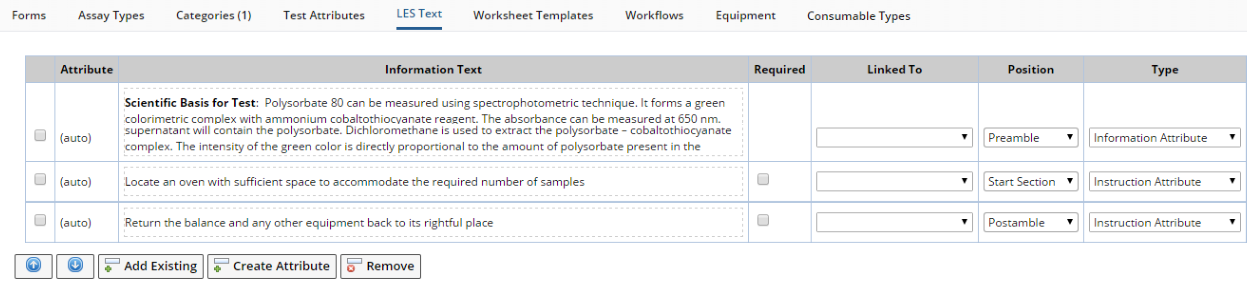

LES Text

Top

The maintattribute Element in the SDI Maintenance page for the Definition SDI contains a "linkattributes" property list, which renders an "LES Text" detail tab as shown in the example below.

The "LES Text" detail defines:

•	"Information" such as methodology, warnings, directives, and so on.
•	"Instructions" such as a stepped Task to be completed and acknowledged by clicking a checkbox at runtime.
•	"Attributes" that collect information to be stored in the Worksheet (as opposed to information that is stored against the Samples and Tests themselves).

This is essentially a collection of Attributes, each Attribute defining Instructions and Information that will be rendered by each Attributes Control in the Worksheet. Where applicable, some Definition SDCs also have specialized operations in the detail. For example, Test Methods include the "Linked To" dropdown that allows linking the Attribute to a specific Parameter List. Note that in this example Worksheet, separate Attribute Information in the form of bulleted lists is provided for each Parameter List.

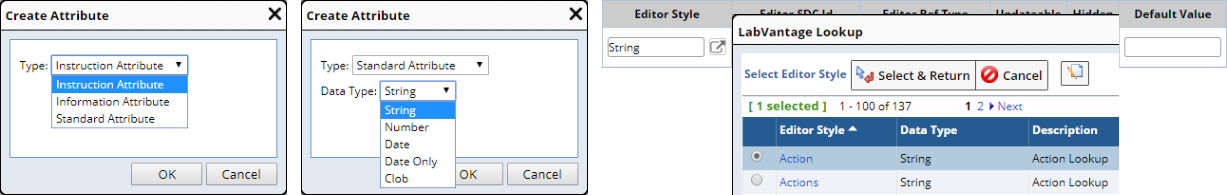

This is configured in a manner similar to that shown in Attributes → Adding Attributes to Tests → Creating Attributes Not Defined in the Attributes Master List. However, a key difference when dealing with LES Text is the behavior of the "Create Attribute" button. In the context of LES Text, "Create Attribute" asks for the Attribute "Type" (below left). Choosing an "Instruction" or "Information" Type inserts a row of that Type and defaults the Data Type to S (String). If you choose a "Standard" Type (below center), you can also choose the Data Type for the Standard Attribute. If you want to apply an Editor Style (below right), the lookup is filtered by the chosen Attribute type (see Editor Styles if you are not familiar with them).Also note selecting an attribute type of Information or Instruction will

The "Position" dropdown allows setting the position of each Attributes collection in the LES Worksheet. The "Position" of each Attribute in this detail corresponds to Attributes Controls in the Worksheet that are defined with the same Position. This is how it knows where to put each Attribute in the Worksheet.

The best example of how these LES Text Attributes are inserted into the Worksheet can be found in the OOB configuration for the Alkali Metals Test Method (see LES Global Worksheet Template based on Test Methods → LES Text Content and Positioning). This also has example of Repeating Sections, which repeat Sections based on conditions in the Worksheet.

Specialized Worksheet Options

Top

Among the numerous Worksheet options described in ELN Worksheet Manager → Detail Panels → Actions → Worksheet Options, two can be used to provide specialized direction for to LES Worksheets:

•	In the "Worksheet" tab of Worksheet Options, the "Policy" option can point to a specific node of the ELN Policy, thereby assuming the property definitions for that node.
•	In the "LES" tab of Worksheet Options, checking "LES" identifies the Worksheet as an LES Worksheet. Options can be exercised such as excluding Sections that have no included/visible Controls and/or Controls with no data.

Basic OOB LES Worksheet Generation Examples

Top

Here are some basic examples of how LES Worksheets can be quickly generated using preconfigured functionality provided by the OOB configuration. For more variations, see Create LES Worksheet Rule and Author Rule.

NOTE:

An LES Worksheet can be created only if the Instance Object does not already have a Worksheet.

Example: Definition SDI = Test Method

The "Alkali Metals" Test Method is preconfigured for the "Standard WorkItem LES Worksheet (Verbose)" Worksheet as follows:

Item	Description
Create LES Worksheet Rule	On Demand
Worksheet Template	Standard WorkItem LES Worksheet (Verbose)
Workbook	Defaults to the current Workbook.
Author Rule	Current User

Add a Sample, then add the "Alkali Metals" Test Method to the Sample. In this example:

Select the Test in the Manage Tests page.

Click the "Create LES Worksheet" button.

Click the Worksheet icon that is shown for the selected Test. The Worksheet opens in the Worksheet Manager.

If the "Create LES Worksheet Rule" is "On Creation", the Worksheet is generated when the Test Method is added to the Sample (and saved).

If the "Create LES Worksheet Rule" is "On Assignment" and the "Author Rule" is "Assigned User", the Worksheet is generated when you click the "Assign Analyst" button in the Manage Tests page, then choose the Analyst to which the Test will be assigned.

NOTE:

For more variations, see Create LES Worksheet Rule and Author Rule.

Example: Definition SDI = QC Method

The "Precious Metals" QC Method is preconfigured OOB as follows:

Item	OOB Configuration Setting
Create LES Worksheet Rule	On Demand
Worksheet Template	QCBatch LES Worksheet
Workbook	Defaults to the current Workbook.
Author Rule	Current User

Add a QC Batch that is associated with the "Precious Metals" QC Method. In this example:

Select the QC Batch in the QC Batch List page.

Click the "Create LES Worksheet" button.

Click the Worksheet icon that is shown for the selected QC Batch. The Worksheet opens in the Worksheet Manager.

If the "Create LES Worksheet Rule" is "On Creation", the Worksheet is generated when the QC Batch is created.

If the "Create LES Worksheet Rule" is "On Assignment" and the "Author Rule" is "Assigned User", the Worksheet is generated when you click the "Assign Analyst" button in the QC Batch List page, then choose the Analyst to which the QC Batch will be assigned.

NOTE:

For more variations, see Create LES Worksheet Rule and Author Rule.

Example: Definition SDI = Instrument Type

The "pH Meter" Instrument Type is preconfigured OOB as follows:

Item	OOB Configuration Setting
Create LES Worksheet Rule	On Demand
Worksheet Template	Instrument Certification LES Worksheet
Workbook	Defaults to the current Workbook.
Author Rule	Current User

Generate a Workorder for Daily Calibration using the SDICertification Schedule Task in the "Calibration" Schedule Plan. In this example:

Select the Workorder in the Pending Certifications page (LIMS → Instrument Certification →
Pending Certifications).

Click the "Create LES Worksheet" button.

Click the Worksheet icon that is shown for the selected Workorder. The Worksheet opens in the Worksheet Manager.

If the "Create LES Worksheet Rule" is "On Creation", the Worksheet is generated when the Instrument Certification Workorder is created (System Admin → Schedule Plan List → Scheduling).

If the "Create LES Worksheet Rule" is "On Assignment" and the "Author Rule" is "Assigned User", the Worksheet is created when the Instrument Certification Workorder is assigned to a User by editing the Workorder (LIMS → Instrument Certification → Workorder List → Edit).

NOTE:

For more variations, see Create LES Worksheet Rule and Author Rule.

Example: Definition SDI = Sample Type

The "Finished" Sample Type is preconfigured OOB as follows:

Item	OOB Configuration Setting
Create LES Worksheet Rule	On Demand
Worksheet Template	Finished Product Sample LES Worksheet
Workbook	Defaults to the current Workbook.
Author Rule	Current User

Associate the "Finished" Sample Type with a Sample. In this example:

Select the Sample in the Sample List page.

Click the "Create LES Worksheet" button.

Click the Worksheet icon that is shown for the selected Workorder. The Worksheet opens in the Worksheet Manager.

If the "Create LES Worksheet Rule" is "On Receive", the Worksheet is generated when the Sample is Received.

NOTE:

For more variations, see Create LES Worksheet Rule and Author Rule.

Example: Definition SDI = Consumable Type

There is no preconfigured Consumable Type. Add a Worksheet Template to a Consumable Type as follows:

Item	Configuration Setting
Create LES Worksheet Rule	Consumable Types do not have this option. All LES Worksheets are created on demand.
Worksheet Template	Mix Consumable LES Worksheet
Workbook	Defaults to the current Workbook.
Author Rule	Current User

Add a Consumable Lot that is associated with the Consumable Type, then:

Select the Consumable Lot in the New Consumable Lots List page.

Click the "Create LES Worksheet" button.

Click the Worksheet icon that is shown for the selected Consumable Lot. The Worksheet opens in the Worksheet Manager.

NOTE:

For more variations, see Create LES Worksheet Rule and Author Rule.
